Short answer
Test it, don't guess
Bad alternator or battery: the two faults overlap almost completely, and both are tested free, in about five minutes, at any AutoZone, O'Reilly or Advance Auto Parts counter without buying anything. A battery is $180 to $312 at the counter, fitted free where you buy it. An alternator runs into four figures.
OilAndMiles.com - A car that won't start gives you two suspects, a bad alternator or a dead battery, and no way to tell them apart from the driver's seat. Both make the engine crank slowly, both dim the headlights, and both put a warning light on the dash that doesn't tell you to stop where you are. Both let you jump-start the car and then strand you again in the same parking lot.
So people guess, and usually they guess battery, because it's the cheaper thing to be wrong about and the part sitting in plain sight when you open the hood. Sometimes that's right. When it's not, the new battery goes flat within a week, because the failing alternator that killed the old one is still there.
There's no reason to guess. The test that separates them is free, takes about as long as filling the tank, and the shops that run it are already open on Sunday.
Signs of a bad battery vs a bad alternator
The signs overlap almost completely, and that's the whole problem. A battery stores the charge; an alternator makes it while the engine runs and keeps the battery topped off.
When either one stops doing its job the car ends up in the same place: not enough electricity. That's why the symptom lists published for the two faults read almost identically.
A handful of signs do lean one way. They lean; they don't prove.
| What you notice | Leans | Why it leans that way |
|---|---|---|
| Slow, labored cranking first thing in the morning, better later in the day | Battery | A weak battery recovers a little as it warms and as the alternator puts charge back in |
| Car starts on jumper cables, then dies again once the cables come off | Alternator | The jump proved the starter works. Dying immediately means nothing is replacing what the engine is using |
| Headlights dim at idle and brighten when you rev | Alternator | Output rises with engine speed. A battery doesn't care what the tachometer says |
| Nothing at all: no lights, no click, no dash | Battery, or a connection | A flat battery and a corroded terminal look identical from the seat |
| A squeal, whine or grind that rises with engine speed | Alternator | Worn bearings inside it, or a belt slipping on its pulley. A battery has no moving parts to make noise |
| Battery case swollen, or a rotten-egg smell | Battery | The case is deforming or venting. This one is close to conclusive |
Read that table again and notice how much of it depends on catching the car in a particular mood: first thing in the morning, at idle, at the moment the cables come off. Miss the moment and you're back to guessing. That's the case for testing rather than observing.

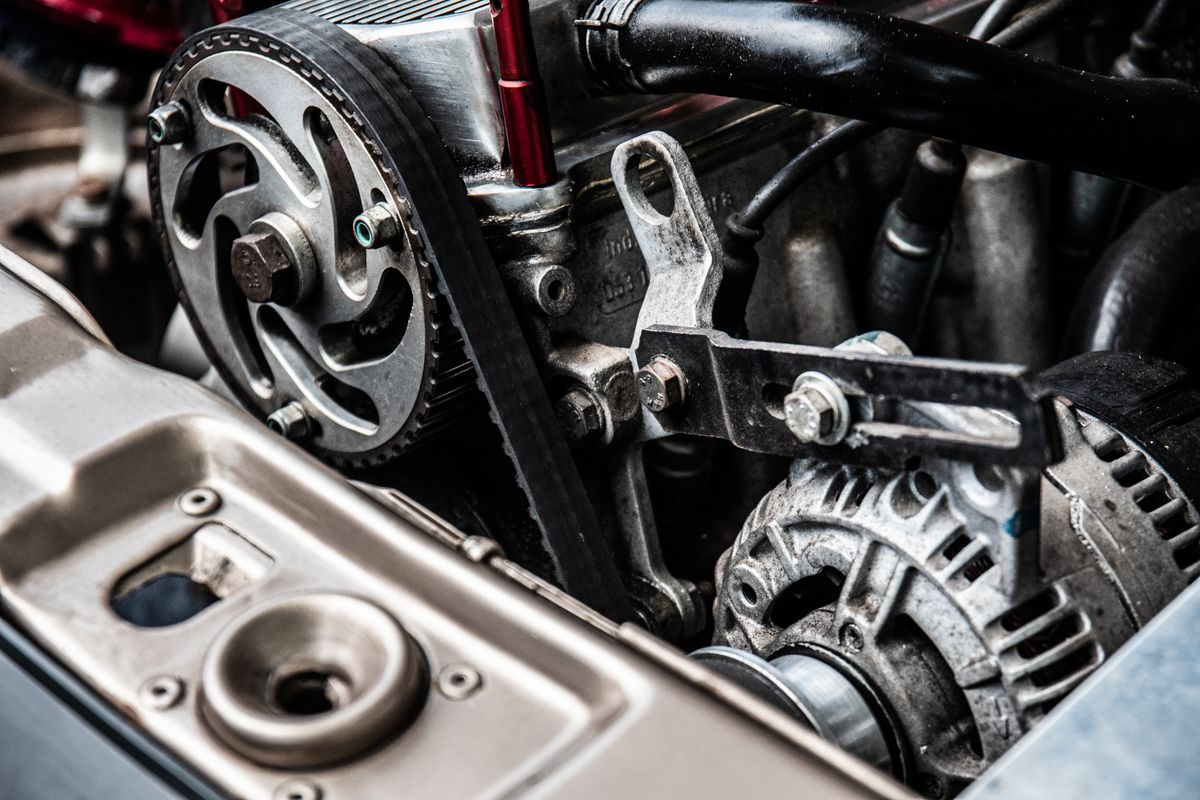

The alternator, and why it whines
What the data says
Electrical faults aren't a rare corner of car ownership. Across the 4,091 year-make-model combinations in our complaint lookup, covering model years 2010 to 2025, ELECTRICAL SYSTEM sits among the six most-complained-about components for 3,526 of them, or 86%.
We counted that ourselves rather than quoting it, and the category is broad enough that we won't stretch it: it covers far more than charging, so it doesn't say 86% of cars have alternator trouble. What it does say is that of every area of a modern car an owner might file a federal complaint about, this is the one that shows up almost everywhere.
Counted from NHTSA's FLAT_CMPL bulk complaint file, the same data behind our complaint lookup by model. Each model-year records only its top six components, so a car whose electrical complaints sit seventh isn't counted here.
How long does a car battery last?
A car battery lasts three to five years, which is the figure every retailer and manufacturer publishes, and the date it was made is usually stamped on the case or on a sticker on top. Worth knowing before any test, because it decides what the result means.
The alternator outlives it several times over, at 80,000 to 150,000 miles, which is why a battery that keeps dying on a car with plenty of miles left points somewhere else. Why an alternator has no replacement interval is a separate question with a separate answer.
Age isn't a symptom and it doesn't tell you which part failed. What it tells you is whether the answer you get is expected: a four-year-old battery that fails a test has simply reached the end, while the same result on a one-year-old battery means something charged it wrongly, and that something is still on the car.
How to tell if your alternator is bad, for free
AutoZone, O'Reilly Auto Parts and Advance Auto Parts all publish battery and charging system testing as a free walk-in service. O'Reilly lists free battery testing and free alternator and starter testing as two separately named services.
The test takes about five minutes, and it covers the whole circuit rather than just one part of it: the battery's state and its ability to hold a load, the alternator's output with the engine running, and the current the starter draws.
That last point is the one worth understanding, because it's why the free test beats a guess so decisively. You aren't asking a person to look at your battery and have an opinion. A handheld tester puts a load on the battery and watches what the voltage does, then watches what the alternator does about it.
It answers the question you actually have.
What can go wrong with the free test?
The word every is the one to read carefully. AutoZone's own terms say in-store services vary by location, available personnel and vehicle, which is the difference between a service a chain offers and a service every branch can do for every car on the day you turn up. We haven't stood at one of those counters ourselves, so what's here comes from what the chains publish rather than from watching it done.
Worth a phone call if the drive is a long one.

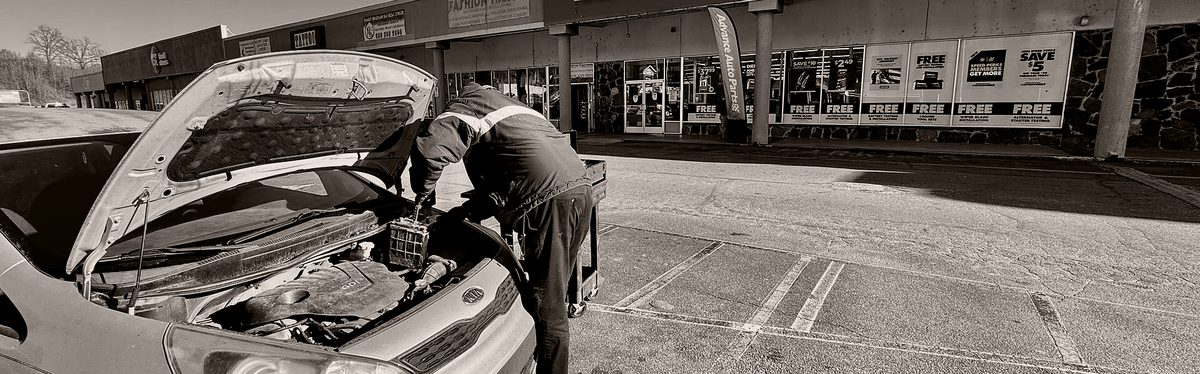

Drive there, don't jump and park
Two practical notes. If the car won't start at all, the battery can be carried in on its own and tested off the vehicle, which is what those counters do all day. And if it does start, drive there rather than jump-starting and switching off in the parking lot: the test wants the engine running.
What should a 12-volt battery read when fully charged?
12.6 to 12.8 volts, engine off and the battery rested. A basic multimeter costs less than a tank of fuel and turns this into a two-minute job in your own driveway, and there are two readings that matter, in this order:
Engine off, and rested. A healthy 12-volt lead-acid battery sits at about 12.6 to 12.8 volts when fully charged and at rest. Around 12.2 volts is roughly half charged.
The word doing the work there is rested. An accurate open-circuit reading needs the battery disconnected from any load or charger and left to settle, because a battery just off a drive reads high for a while on surface charge alone. A reading taken thirty seconds after you switch off flatters the battery.
- Engine running. The voltage should climb to roughly 13.7 to 14.7 volts. That gap between the two readings is the alternator doing its job. If the number barely moves off the resting figure, the alternator isn't charging. If it climbs past about 15 volts, the regulator is overcharging, which is its own failure and quietly cooks the battery.
So: a battery that reads low at rest and charges normally when running is a battery at the end of its life. A battery that reads fine at rest but sees no rise when the engine starts is a charging fault, and the battery is the victim rather than the cause.
What guessing wrong costs
Between $180 and $312, and then the fault is still in the car. This is the part the symptom articles leave out, and it's the reason to spend five minutes on a test:
Guessing battery when it was the alternator. A battery is $180 to $312 at a parts counter, and the grade the car asks for is what moves it. You pay that and the fault is still in the car.
Worse, the alternator that killed the old battery starts on the new one: a regulator stuck high overcharges it, an undercharging one cycles it deeply every day. You've spent the money and shortened the life of what you spent it on.
- Guessing alternator when it was the battery. A national estimator puts alternator replacement at $757 to $1,032, with about $611 to $801 of that parts and $195 to $286 labor. That's as much as a thousand dollars on a car that needed a $200 part. Nothing is damaged by the mistake, which is the one mercy, but the money is gone.
What a new battery costs, by grade rather than by size
Six grades of one part, not six things to buy, and the grade the car asks for moves the price more than its size does.
| Standard flooded batteryDuralast, two-year warranty, free-flowing electrolyte. Made in 39 group sizes for private cars, more than any other grade, and priced within a few dollars across them: $180 in group 58, $185 in group 35 and group 48 / H6. Plus a $22 core deposit returned with the old battery | $180 – $185Part only, at the counter |
|---|---|
| Enhanced flooded batteryDuralast Platinum EFB, group 48 / H6. Liquid inside still, but heavier plates for the repeated restarts of an entry-level stop-start system. A car that asks for EFB may be given AGM instead; the reverse isn't safe | $202Part only, at the counter |
| Higher-output flooded batteryDuralast Gold, three-year warranty. $230 in group 35 and group 48 / H6, $240 in the larger group 86. More cranking amps for cold climates and heavier electrical load | $230 – $240Part only, at the counter |
| AGM batteryDuralast Platinum, four-year warranty, twice the cycle life. Only 12 group sizes for private cars against the standard grade's 39, so many cars have no AGM option in this range at all. Group 35 is $205, group 48 / H6 $260: this is the grade where size genuinely moves the price | $205 – $260Part only, at the counter |
| AGM battery for stop-startDuralast Platinum Elite, five-year warranty and three times the cycle life, for cars that shut the engine off at every light | $290 – $312Part only, at the counter |
| Gel batterySilica turns the electrolyte to a gel. Spill-proof and good with vibration, but slow to charge, and no mainstream line sells one as a car starter battery. Powersports and deep-cycle work instead | not sold for carsNot sold for cars |
| FittingFree where you bought it. An independent adds $25 to $75, a dealer $50 to $150, and the spread is wider than the work: some European cars need the new battery registered to the car's computer before it will charge properly | free to $150Labor only, estimated |
Listed AutoZone prices across AutoZone's Duralast grades in group sizes 35, 48 / H6, 58 and 86, read August 31, 2026, so the grades are comparable rather than mixed between brands. Passenger cars only: motorcycle, marine, lawn, auxiliary and commercial truck sizes are excluded, and they're the reason a raw catalogue range would read far lower than this one. Fitting is free at AutoZone, O'Reilly, Advance Auto Parts and Walmart on a battery bought there. The paid figures are a market range, not a quote: Walmart and Batteries Plus publish theirs, and the independent and dealer figures are where several 2026 cost guides agree with one another. None of those guides names a survey, so we give the range with that attached rather than as a sourced number. We couldn't trace the fitting figures to anyone who measured them.
What an alternator replacement costs, part by part
The first two rows are what the part costs you. The third is what a shop charges for the same unit.
| Remanufactured alternatorTerrePower and Remy. Stripped, inspected, worn components replaced and tested. A 2017 Accord is $186 to $255, a 2017 F-150 $190 to $377, plus a core deposit of $34 to $75 you get back when the old unit goes home | $186 – $377Part only, at the counter |
|---|---|
| New aftermarket alternatorWAI Global. No core to return and no prior service life. The original-equipment part sits close by rather than far above it: Ford's own Motorcraft unit for the F-150 is $335 | $235 – $384Part only, at the counter |
| The same alternator as a shop bills itBetween one and a half and four times the marketplace price for the same alternator, depending on the car and the grade the shop picks. Markup and the grade the shop chooses, not a different part. This is the line worth asking about | $611 – $801Part only, as a shop bills it |
| LaborOne to three and a half hours. Belt off, a few fasteners and one connector on an easy car; a transverse V6 or a packed engine bay doubles it | $195 – $286Labor only, estimated |
Part prices are live RockAuto listings for a 2017 Honda Accord 2.4L and a 2017 Ford F-150 5.0L, read August 31, 2026. Totals from Kelley Blue Book and RepairPal estimators, read the same day. Five sources compared; the spread between them is real and is mostly the grade of part.
Set against a wrong guess in either direction, a free test that takes five minutes isn't a nice-to-have. It's the single highest-return thing you can do about this fault.
What if it's neither the battery nor the alternator?
Battery-or-alternator is a false choice often enough to be worth naming, and the alternatives are mostly cheaper than both:
- A corroded or loose terminal. The furred blue-white crust on a battery post is resistance, and enough of it produces exactly the no-crank, dim-everything picture a flat battery does. Cleaning and tightening the terminals costs nothing but a wire brush, and this is the first thing to look at, before any test, because it's visible.
- A bad ground strap. The same fault one step further along. The braided strap from the engine or body to the battery's negative side corrodes or works loose, and the circuit gets a bottleneck it didn't have when the car was new.
- The starter. A single loud click and no crank, with lights that stay bright, points away from both suspects. The free counter test covers starter draw for exactly this reason.
- A parasitic drain. A good battery, a good alternator, and the car still flat after three days sitting means something is drawing current with the key out. That's a diagnostic job rather than a part, and it's the one case here where a shop earns its hourly rate. It rarely appears in a 100,000-mile maintenance estimate and shows up on the bill anyway.
None of these is exotic. All of them produce symptoms that look like the two expensive parts, which is the entire argument for testing before buying.
What should you do about a bad alternator or battery?
Four steps, and you stop at whichever one gives you the answer. They run in order of effort rather than price, because the first three cost nothing and what separates them is whether you have to leave the car. 4 steps below:
- Open the hood and look at the terminals. Crusty or loose, clean and tighten them, then see whether the problem goes away. Cost: $0, and you never leave the car.
- If you own a multimeter, take two readings in the driveway. Engine off and rested, then engine running. If the number barely moves between them, the alternator isn't charging. Cost: $0, if you already own the meter.
- Get the free test at a parts counter. Drive there if the car runs, or carry the battery in if it doesn't. Ask for the charging system test, not just the battery test: they're different things and the second one is what tells you about the alternator. Cost: $0, against $180 to $1,032 for guessing.
- Buy the part the test names, and only that part. If a shop quotes you both at once without having tested, ask what the charging system read. There's a number and they have it. Our guide to reading a repair estimate covers what else to ask when a quote arrives with two parts on it.
One caveat worth stating plainly: a battery that has been deeply flattened by a faulty alternator may genuinely need replacing as well, even after the alternator is fixed. That's not an upsell. But it's a conclusion the test supports, not a guess made in the parking lot.
Conclusion
The test costs nothing, the guess costs hundreds
A car that won't start tells you the electrical system is short of charge, and nothing more. Everything past that is a measurement or a guess.
What separates them is a five-minute test the parts chains do for nothing. Guessing instead turns a $180 job into a $312 one with the fault still in the car. That's why this page spends more words on the test than on the parts.
So get the charging system tested before you buy either part, and ask for the battery to be tested in the same visit. A shop that quotes you a part before it has read a number is quoting a guess, and you're the one paying for it.
Oil & Miles sends you to the free measurement before the parts counter, across symptoms and repair costs.
Common questions
Asked most often
Can a bad alternator ruin a new battery?
Yes, and in two different ways. An alternator that undercharges leaves the battery cycling deeply every day, which shortens its life. A voltage regulator stuck high overcharges it, which is worse and faster. This is why replacing a battery without testing the charging system can cost you the battery twice.
Is the battery light on the dash about the battery?
No. Despite the picture, that lamp reports the charging system. It normally comes on when the alternator output falls below what the car expects, which is an alternator or regulator problem far more often than a battery one.
How long can I drive with a bad alternator?
Until the battery runs out, and no further. With nothing replacing what the engine and lights consume, a full battery might give you twenty or thirty minutes of daylight driving and considerably less at night with the headlights and heater on. Drive to the nearest place that can test it, not home.

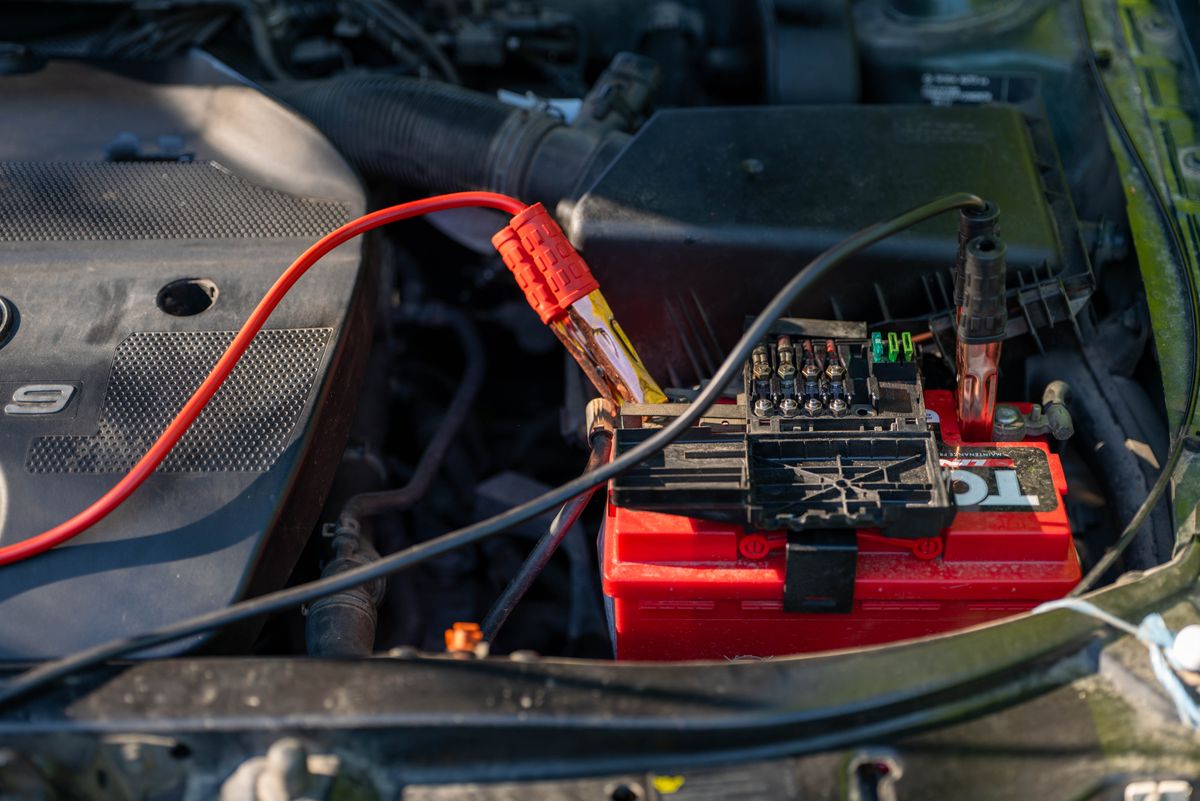

Can you jumpstart a car with a bad alternator?
Yes, and that's the test. It starts, because the donor battery does the starter's work, but it won't keep running once the cables come off. Dying within a minute of disconnecting points at the alternator; staying running points at the battery.
Reverse the clamps and the alternator's diodes can go in seconds, turning a battery problem into a charging one.
Can a bad alternator drain a battery?
Yes, and it's the one failure the counter test can miss, because that test runs with the engine on. A failed diode leaks current back with the key out, and a stuck regulator does it faster.
What identifies it is the pattern: healthy on test, dead by morning. Ask for a parasitic draw test with the alternator unplugged.
What causes an alternator to go bad?
Four parts inside wear out, and four things outside decide how fast. The single biggest is a tired battery: one that can no longer hold charge makes the alternator run at full output every mile you drive. We set all eight out, with the mileages they typically reach, in how long an alternator lasts.
Does the free test really cost nothing?
Yes, and all three chains publish it as a free walk-in service. The caveat is theirs rather than ours: AutoZone's terms say in-store services vary by location, available personnel and vehicle. They offer it because a customer whose battery tests bad usually buys a battery on the spot, which is worth knowing and doesn't make the test less useful.
My car starts fine but the lights flicker. Which is it?
Flicker that tracks engine speed, dimming at idle and brightening as the revs rise, points at the alternator, because output rises with engine speed and a battery doesn't behave that way. Get it tested before it strands you, since a car that still starts is a car you can drive to the counter.
