How to Check Transmission Fluid Without a Dipstick

Reading a plug is roughly how a manual is checked, and only partly how the other two are, which need the engine idling and the fluid in a temperature window. If yours does have a stick, the dipstick procedure is a different job.

How do you check transmission fluid without a dipstick?

You read it at a plug on the transmission case, and the conditions depend on which of three units you have: a sealed automatic, a manual or a CVT, a continuously variable transmission. A manual has a clutch pedal, and the owner's manual or window sticker names a CVT, since some CVTs imitate gears.

The three differ on what makes the reading valid: a sealed automatic is read idling in a temperature window, a manual with the engine off, and a CVT idling in its own window. A dual-clutch or hybrid transmission has its own procedure, so go by its service manual.

The finger test often given for every car is the factory method for a manual, and wrong for the other two, so everything below follows from which row you're in. If you haven't yet established whether your car has a dipstick at all, start by finding the dipstick.

O'Reilly says a universal dipstick only helps if your car has a fill tube. Even then, you still need the car's marks and temperature.

How do you check fluid in a sealed automatic transmission?

A lift, a scan tool and fluid in the right window, because a plug opening is the level indicator: the fill plug on some, a separate one on others. Take the plug out under the right conditions and fluid drips from the opening, as ZF and GM word it, and that drip is the reading.

Pull the drain plug by mistake and the transmission empties, so ask the shop which plug it is. What happens next depends on the maker's procedure:

• Fluid runs out. ZF and GM say wait until it only drips, then close the plug.
• Nothing runs out. ZF and Hyundai add fluid through the fill hole until it runs out, and Hyundai's step ends there, with a separate overflow plug.

GM and Toyota don't expect a level check on a sealed unit unless something points to a leak. What follows is for when something has: a leak, a slip, a shop that says it is low, or a fluid change you want done properly.

ZF's service information for the 8HP, one of the most widely fitted eight-speed automatics, lists the conditions to meet before the plug moves. Here's what the shop does, in order:

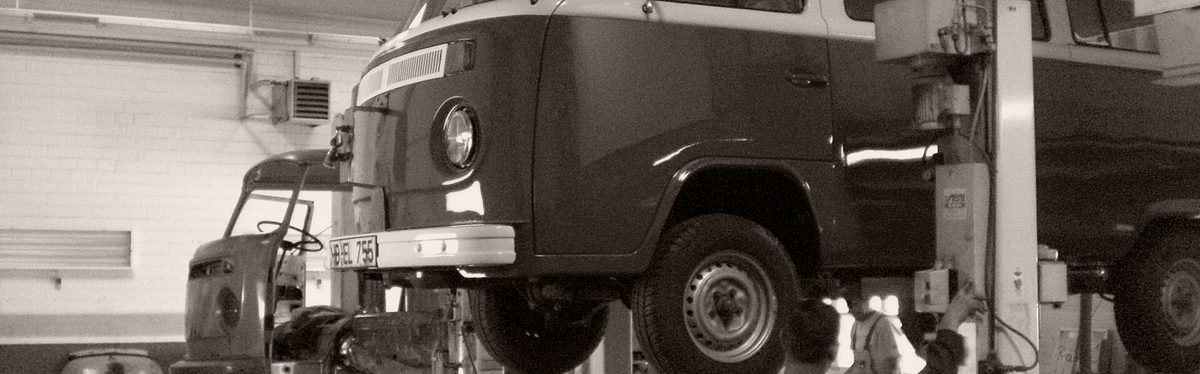

• Park the car dead level. Not roughly level: ZF's wording is horizontal on the platform. The fluid finds its own surface, and a driveway with any camber tilts that surface away from the plug, so this means a lift.
• Put the selector in Park. It's one of the conditions ZF lists before the plug moves.
• Set the parking brake and leave the engine idling. Stop the engine and fluid drains back out of the torque converter into the pan, and the level rises with it. Pull the plug then and you get a gush of fluid and a level reading that isn't real while driving.
• Connect a test device that reads the fluid temperature. ZF wants 30–50°C, which is 86–122°F. Below the window, allow it to warm up, and above it, allow it to cool.

If you can't meet a step, a level lift or a tool reading the fluid temperature, that's the point to stop and book it. An independent shop or a dealer has both.

The temperature window is the condition that catches people, because it runs against the instinct you learned from checking engine oil. It's also not a universal number: Hyundai's bulletin for its own eight-speed asks for a different window, a different selector position and a different number of plugs.

Warming the car up as you would for a dipstick check overshoots the window. Fluid expands as it warms, so a reading taken outside the window is real but isn't the level the unit was designed around.

The window belongs to the transmission, not to the car, so the same model year with two different transmissions has two different answers. Reading the fluid temperature live is what an OBD-II scan tool, the device that reads the car's computers, is for, and it's why this ends up a paid job.

Filling at the case

How do you check manual transmission fluid without a dipstick?

A manual is read at the filler plug with the engine off, and it's the one of the three you can check yourself on a free afternoon. There's no torque converter to drain back and no scan tool involved at any point.

One condition stays: Honda's owner's manual asks for the check at normal operating temperature on level ground, so drive it first, then park level and switch off. Use four ramps or rated stands, never a jack alone, chock the wheels and mind the hot oil at the plug.

To check manual transmission fluid without a dipstick, work through the 5 steps below, in order, with the car parked where you can reach the side of the casing:

1. Warm it up, then get the car level. A short drive brings it to operating temperature. Then raise it evenly on a flat garage floor, on four ramps or rated stands.
2. Leave the engine off. A sealed automatic is checked idling and a manual isn't, because there's no torque converter to drain back, so the level in the case is the level you read.
3. Take out the filler plug. It sits on the side of the casing.
4. Read the level at the edge of the hole. Honda's manual says the level is right when the oil comes up to the edge of the bolt hole, and its way of checking is to carefully feel inside the bolt hole with your finger.
5. Below the edge? Pump oil in through the filler hole. Keep going until it starts to run out, as Honda's manual puts it. A hand pump or a squeeze bottle with a hose does it, because the hole is on the side of the casing rather than the top.

Two cases on a manual go differently from these steps, and so check which one applies before the plug comes out:

• There are two bolts, not one. Honda's six-speed manual is read at a separate check bolt and filled at the filler bolt, so find both before you start.
• You can't reach the hole from below. Ask a shop to read it while the car is on a lift for something else, which costs lift time rather than skill.

How do you check CVT fluid without a dipstick?

A CVT without a dipstick is checked under the sealed automatic's conditions, and the procedure Subaru publishes for the 2017 Forester spells out the rest. Work through the 3 steps below, in order:

• Park dead level with the engine idling, then cycle the selector. Same as the sealed automatic, except that Subaru's procedure runs the selector P–R–N–D and back D–N–R–P with the engine idling, to move the fluid around before anything is read, and only then returns it to Park.
• Bring the fluid into a narrower window than ZF's. Subaru's bulletin for the 2017 Forester sets 95–113°F (35–45°C), a band of about eighteen degrees to land inside rather than thirty-six.
• Read at the plug the procedure names. On Subaru's CVT the level is right when fluid reaches the bottom of the filler plug hole.

A step that can't be met is the point to stop, because without a tool reading the fluid temperature there's no way to know you're inside the window. Subaru's bulletin warns that fluid added to the filler hole while the transmission is cold overfills it.

The dash won't tell you when you're in the window: Subaru's procedure reads it with a tool, and Nissan's bulletin on its CVT fill cap says the cap has no gauge. How these units hold up is in the CVT complaint data.

Who will check it and who won't

A shop with a lift and a scan tool, not a parts store counter. The big chains' published free services are battery testing and charging, fault-code scans, alternator and starter testing, and tool loans.

There's no lift in a parts store and no fluid-level service on those lists. A sealed fluid check needs a car in the air and a scan tool reading live temperature, which rules most places out:

If the car is going in for anything that puts it on a lift, ask for the level to be checked while it's up there. A standalone check pays for lift time more than for skill, so pairing it with a job that is already on the lift is the cheap way to get it done.

What to do without a dipstick

Which of the three you have decides everything else, and the rest is choosing who does it. To check transmission fluid without a dipstick, work through the 4 steps below, in order:

• Work out which of the three you have. A clutch pedal means a manual, a car that pulls away with no shifts is usually a CVT, and anything else with no dipstick is usually a sealed automatic, unless the manual says dual-clutch or hybrid.
• On a manual, do it yourself. Buy the gear oil your manual names, warm the car, get it level on four ramps or rated stands and read it at the filler plug.
• On a sealed automatic or a CVT, book it with another service. Ask for the level to be read while the car is already on a lift, with the fluid temperature read live by a scan tool.
• If it reads low, have the leak found and the level set. A low reading in the right conditions usually means a leak to find or an earlier wrong fill. Don't drive it if it slips or a warning light comes on.

Three situations can stop these steps as written, and each one still has a clear way round it, without guessing:

• You can't find the plug. On many cars it sits behind a cover or shield. The makers' bulletins show it in photographs, so ask the shop to show you where it is on yours.
• The shop offers a fluid change instead. That's a separate decision with a less obvious answer, which whether a flush is necessary covers.
• Nothing is wrong and you just want to check. A sealed unit that shifts normally and doesn't leak has no reason to be checked on a calendar. The signs that do call for a check are in low transmission fluid symptoms.

The engine oil dipstick can't tell you

The engine oil dipstick can't be used to check transmission fluid, on any of the three. They're separate sealed systems holding different fluids that never mix.

The oil dipstick tube runs down into the engine's oil pan, and the transmission has its own casing, fluid and level, connected to nothing. Fluid on the oil dipstick that looks or smells wrong is a different, real problem, and fuel getting into the oil is one explanation.

Use this image

Free to republish under CC BY 4.0: credit Oil & Miles and link to this page. The snippet does both.

Copy the snippet

Common questions

Asked most often

Does a parts store or a quick-lube shop check transmission fluid without a dipstick?

A parts store won't, because its published free services don't include it. A quick-lube bay has the lift, so ask whether it can read the fluid temperature live, and an independent shop or a dealer is where this gets done.

Can I use the oil dipstick to check transmission fluid?

No, they're separate systems holding different fluids with no connection between them. The oil dipstick reads the engine's oil pan and tells you nothing about the transmission's level.

Where do I add fluid if there's no dipstick?

Through the fill plug, which on some units is the same hole the level is read at and on others has a separate check or overflow plug. On a sealed automatic or a CVT, follow your transmission's procedure for that fill, usually idling, level and in the window.

What happens if I check it at the wrong temperature?

You get a confident reading that is wrong in a predictable direction, high above the window and low below it. Topping off a cold unit that only looked low leaves it overfilled once it warms up.

Procedures differ between manufacturers and between transmissions fitted to the same model. Where your owner's manual or service manual disagrees with anything here, follow it. Compiled in September and October 2026 for the US market. This article is general information, not advice about your specific vehicle. See the disclaimer.
