Coolant Leak Repair Cost: $496 to $1,902, by Leak Point

Short answer

Five leak points, one pressure test decides.

Five coolant repairs, priced separately, and a $60 to $88 pressure test that decides which one you're having. The cheapest is a hose and the dearest is a heater core, and the heater core's parts are cheaper than the radiator's. What you're paying for is how far into the car the leak sits.

OilAndMiles.com - You have a puddle, or a level that keeps dropping, and somebody has quoted you a number. Coolant leak repair cost is the one thing you want settled, and almost every page that answers it hands you a range so wide it settles nothing.

$100 to $2,500 isn't an answer. It's the shape of the problem printed as though it were the solution.

That range is wide for a reason worth knowing: it's five different repairs wearing one name. A cooling system fails as a two-clamp job, a bolt-on job, a belt-off job or a dashboard-out job, and those aren't neighbors on a price list. So here is each priced on its own, with the parts and the labor pulled apart, which is the part nobody publishes.

Where coolant actually escapes

Coolant runs in a closed loop under pressure, which is useful to remember, because it means the fluid only leaves where a joint, a seal or a wall has given up. There's no mystery evaporation. In practice the list is short, and the three you can see standing at the fender with the hood open are also the cheap end of it.

The upper hose, the radiator cap and the reservoir are all reachable, all visible, and all cheap by the standards of what follows. If your leak is one of these, the estimate should be modest and you can check the work yourself afterwards.

Three cooling-system parts marked on a photograph of a modern engine bay: the upper radiator hose, the radiator cap, and the coolant reservoir whose cap is stamped COOLANT — Reachable from the fender, and the three cheapest rows in the table. Everything dearer is under the engine or behind the dashboard. Diagram: Oil & Miles

Behind those sit the water pump, which hides behind whichever belt drives it, the thermostat, which bolts to the engine underneath something that has to come off first, and the radiator, which holds the most expensive part on this page. Add the heater core, which isn't under the hood at all. It sits behind the dashboard, and it's the reason this article exists.

Identifying which fluid you're looking at is a separate question with a separate answer, and our guide to car fluid leak repair cost covers all five fluids a car can drop. If the puddle is green, orange or pink and smells faintly sweet, you're in the right place. Whether the color tells you anything else is a question we have answered separately, and the short version is that it tells you less than the bottle implies.

Coolant leak repair cost, by leak point

These are national average ranges for the United States, published by RepairPal's estimator and read from an archived copy dated June 18, 2026. They're ranges rather than quotes, and they exclude tax.

What it costs

What a coolant leak costs to repair, by leak point

Five repairs plus a diagnosis fee, so there's no total: you pay for one leak point, not five.

Diagnosis onlyLabor only, no parts. A pressure test to find where it goes	$60 – $88Labor only, estimated
Radiator hoseAbout $372 of it is the part as a shop bills it, $125 to $183 labor	$496 – $555Parts and labor, estimated
ThermostatParts $417 to $425, labor $193 to $283	$610 – $708Parts and labor, estimated
Water pumpParts $527 to $610, labor $361 to $529	$888 – $1,139Parts and labor, estimated
RadiatorParts $990 to $996, labor $363 to $532	$1,353 – $1,528Parts and labor, estimated
Heater coreParts $494 to $617, and $876 to $1,285 labor, because the dash comes out	$1,370 – $1,902Parts and labor, estimated

National average ranges published by an estimator and read from archived copies dated June 18, 2026, because its live pages refuse automated access. The parts figures are what a garage bills, not what the same part costs over a counter: our own counter census puts a heater core at $42 against the $494 to $617 above, and the gap is the shop's part, its margin and the coolant that goes back in.

Read the last two rows against each other, because they contain the whole argument. The radiator has the most expensive parts on the list at $990 to $996, and the heater core's parts are roughly half that. The heater core still costs more to fix.

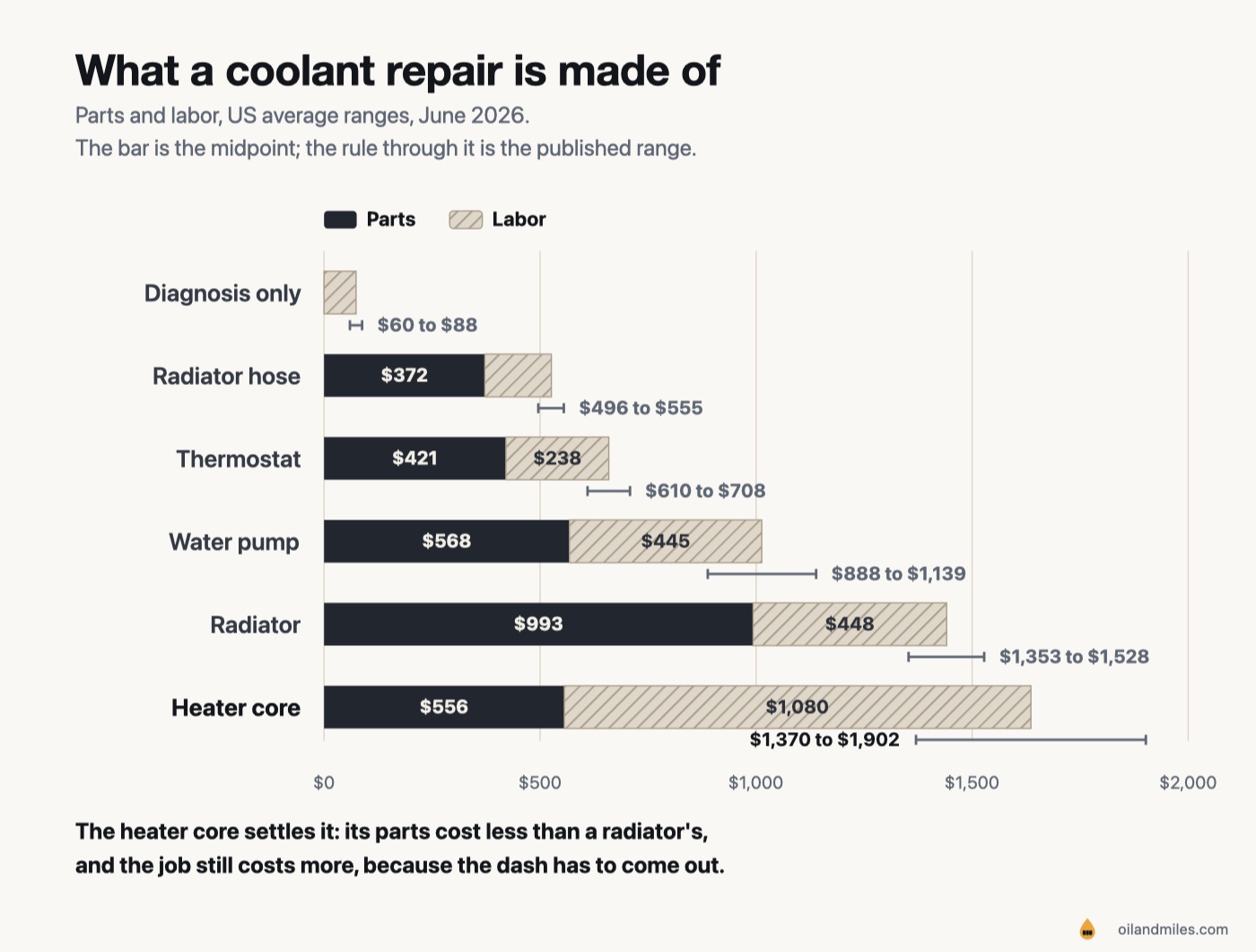

Stacked bar chart of a diagnosis fee and five coolant repairs showing parts and labor separately: the heater core bar is the longest overall while its parts segment is shorter than the radiator's — Drawn, the inversion needs no explanation. The heater core's dark parts segment is shorter than the radiator's, and its bar is still the longest on the chart. Diagram: Oil & Miles

Why the part price tells you almost nothing

A part price is the number people anchor on, because it's the number they can look up. It's also the number that predicts the bill worst. Across these five repairs the parts vary by a factor of about two and a half; the totals vary by nearly four, and they don't vary in the same order.

What actually moves the total is how much of the car has to come apart first. A hose is two clamps and a drain.

A water pump is behind a belt, so the belt, its tensioner and often a cover come off before anyone touches the pump. A heater core is behind the dashboard, and the dashboard comes out.

That's why the same fault costs different money on different cars. A thermostat reachable from above is an hour. The same thermostat under an intake manifold is three, and the difference is $260 of labor for an identical part.

The same five repairs, shown as the share of the bill that is labor rather than parts.
The repair	Labor share	Why it lands there
Radiator	24 to 35%	The dearest parts on the list, and it sits at the front where hands reach
Radiator hose	25 to 33%	Two clamps and a drain. Cheap to reach, whatever the hose itself costs
Thermostat	32 to 40%	Bolted to the engine, usually under something that has to come off first
Water pump	41 to 46%	The belt, the pulleys and often the covers come off to get at it
Heater core	64 to 68%	Cheaper parts than the radiator, and twice the bill, because the dash comes out

The heater core settles the argument. Its parts cost less than a radiator's and the job costs more, so access is the price rather than the component.

This is also the question worth asking a shop, and it's a fair one: how many hours is this job booked at? An estimate you can't argue with becomes an estimate you can understand. Our guide to reading a repair estimate covers what else on that sheet is negotiable.

What owners report

The table below is a national average, and a dealer counter isn't. Three quotes owners posted in the last month, each against its own row:

A 2020 Audi A4 at 42,000 miles, leaking at the coolant tank, quoted $1,546 by the dealer, $1,133 of it parts. That's the cheapest leak point on this page, quoted above our radiator row.

A Volvo XC90 owner posted a leaking coolant hose at $1,765.01, against a hose row here of $496 to $555. And one owner asked a mechanics forum whether $2,200 was a reasonable diagnosis fee, against the $60 to $88 the first row of the table gives.

None of those makes our figures wrong, and reading them as quotes for the same work would be the mistake. They're what a European car, a dealer counter and a leak that has damaged something else look like from the other side of the table, and they're the reason a national average is a starting point for an argument rather than the end of one.

Audi Owners Club and r/VolvoXC90, posts from August and September 2026; r/AskAMechanic, September 2026. Read September 16, 2026. Owner accounts of quotes received, not repairs verified.

What the data says

Shop labor in the United States runs around $132 an hour, from an index of more than 10,000 shops. The technician doing the work earns a median of $24 an hour, according to the Bureau of Labor Statistics for 2024.

The gap isn't a scandal and it's not markup on the technician. It covers the building, the lift, the diagnostic equipment, the insurance, the license, the unbilled hours and the profit. But it explains the arithmetic on your estimate better than any parts catalogue will: every extra hour a job takes adds about $132 whatever the component costs.

US Bureau of Labor Statistics, Automotive Service Technicians and Mechanics, May 2024. Shop rate from a published index of more than 10,000 US shops.

The three places it goes when there's no puddle

Losing coolant with no puddle and no overheating is the version that worries people most. It's not a mystery: the coolant is going somewhere, and there are three somewheres. What matters on this page is that they aren't on the same scale.

The cheapest is a part you can buy at a counter. The dearest isn't on the table above at all, because it's a different repair.

Out of the overflow, and this is the cheap one. A cap that has stopped holding pressure pushes coolant past the reservoir while the engine is hot and draws none of it back as it cools. The cap itself is the cheapest part in the cooling system, well under the $496 that starts the table above, and on many cars it is a two-minute job with no tools.

Into the cabin, and this is the dearest thing on the table. A leaking heater core sits behind the dashboard, so the bill is $1,370 to $1,902 and almost none of it is the part. The core is $494 to $617; the labor is $876 to $1,285, because the dashboard comes out to reach it.

Into the engine, and this one leaves the page. A head gasket lets coolant into a cylinder or into the oil, and that repair runs $1,200 to $5,500 in our own costed head gasket article. At the top of that range it is nearly three times the dearest row on this table.

It's also the one destination where continuing to drive changes the number.

So the spread between the three is the widest on this page: a cap against a dashboard against an engine. Which one you have isn't something you settle by looking harder, and how to tell them apart is set out in our article on the five places a coolant leak comes from. What settles it is the pressure test below, which is why the diagnosis fee is the first row of the table rather than an afterthought.

The diagnosis fee, and when it's worth paying

A coolant leak diagnosis runs $60 to $88, and it's labor only, because there's no part in that figure. What it buys is a pressure test: the system is sealed and pumped up cold, and the gauge either holds or it doesn't. A leak too small to drip while you watch will show as a falling needle in two minutes.

It's worth paying whenever you can't see the leak, and it's close to essential when the level drops with no puddle, because the three destinations above are told apart by where the pressure goes rather than by where the stain is. Many shops credit the fee against the repair if you have the work done there. Ask before you agree, not after.

It's not worth paying when a hose is visibly wet and dripping at a clamp. You already have the answer.

Stop-leak: a repair, or a postponement

Stop-leak products are the cheapest thing on any shelf near this problem, and the pages that rank for them are published by the companies that make them. So here is the version nobody selling it will write.

It works, in a narrow sense, on a narrow fault. A weeping pinhole in a radiator core or a seep at a seal can be plugged by a sealant that circulates until it finds the low-pressure point and sets there. That's a real mechanism and it's not snake oil.

What it also does is circulate through everything else in the loop, including the heater core, which has the narrowest passages in the system. Plugging the leak you have by narrowing the passages of the most expensive component to replace is a trade, and it's one worth making with your eyes open.

A $10 bottle that buys three months before a sale is a sound decision. The same bottle in a car you intend to keep is a bet that the cheap fix won't turn into the $1,902 one.

The honest rule: use it to reach a destination or a sale date, not to avoid a repair you're going to need anyway. We go through what stop leak seals and what it blocks separately, including what Ford and GM have put in writing about it.

What to find out before you pay

Five steps for finding out what is leaking before you pay anyone to look for it. The first four cost nothing, and the fifth is the question that decides the quote. 5 steps below:

Check the level cold, against the marks on the reservoir. Never open a cap on a warm engine. The system is pressurized and the fluid is above its boiling point.
Put cardboard under the car overnight. Green, orange or pink and faintly sweet is coolant. Coolant leaking from the bottom of the car lands under the front on most designs, and where it lands narrows the leak point before anyone charges you to look.
If there's no puddle, look inside the car. Damp passenger carpet, a sweet smell, or a windshield that won't defog points at the heater core.
Stop driving if the gauge climbs. That holds at any point in this list, and it holds harder if the level is dropping fast. Overheating warps heads and destroys head gaskets, which turns a repair on this list into one well past the top of it.
Ask the hours before the price. What has to come off, and how many hours the job is booked at. Ask that before you ask what it costs: it explains most of the gap between two estimates for the same job, and a shop that won't give you both numbers is telling you something.

Conclusion

You're paying for the distance, not the part

The heater core costs half the radiator's parts and nearly twice its bill. That one pair settles the whole page: across these five repairs the parts vary by about two and a half times and the totals by nearly four, and they don't vary in the same order. What moves the number is how much of the car has to come apart first.

So the question that decides your quote is how many hours it is booked at, not what the component costs, and a $60 to $88 pressure test is what tells you which of the five you're having. Oil & Miles pulls the parts and the labor apart on every job it prices, across repair costs.

Common questions

Asked most often

How much does it cost to fix a coolant leak?

Between $496 and $1,902 for the five common repairs, plus $60 to $88 if the leak has to be found first. A hose is the cheap end, a heater core the expensive one, and which you have depends on where in the circuit the fluid is escaping rather than on how much coolant you're losing.

Can I drive with a coolant leak?

Days, not weeks, and only while the gauge stays where it belongs. The reason is on this page rather than in the driving: the moment the needle climbs you stop paying for a $496 hose and start paying for a $1,200 head gasket at best.

Why is my coolant low with no visible leak?

Because it is leaving somewhere you aren't looking. Into the cabin through the heater core, into the engine through a head gasket, or out through a radiator cap that has stopped holding pressure. A pressure test separates the three, which is what the diagnosis fee buys.

Is a coolant leak expensive to fix?

It depends almost entirely on access, not on the part. The most expensive parts on this list belong to the radiator, and the most expensive repair is the heater core, whose parts cost about half as much. Labor is 64 to 68% of that bill.

Does stop-leak actually work?

On a small seep, sometimes, and it circulates through the heater core on its way. It's a reasonable way to reach a sale or a destination and a poor way to avoid a repair on a car you're keeping.

What people ask next

Sources

RepairPal's public estimator, read from archived copies dated June 18, 2026 because the live pages refuse automated access, and quoted as the national average range each page states. RepairPal, archived June 2026
Average auto repair labor rates by state, 2026, aggregated from more than 10,000 shops. The source of the $132 national average used here, and the same figure our brake, timing belt and white smoke pages cite. Tekmetric
US Bureau of Labor Statistics, Occupational Outlook Handbook, 2024 figures, for the technician median wage of $24 an hour. Bureau of Labor Statistics
Owner quotes posted publicly, Audi Owners Club, r/VolvoXC90 and r/AskAMechanic, August and September 2026. Quotes received, not repairs verified. Read September 16, 2026

How this was compiled

The archive is cited rather than the live page on purpose, with its snapshot date, because the source refuses automated access and a citation nobody can open isn't a citation.

What we didn't do

We didn't compute any figure from book labor times. The guides shops actually bill from, Mitchell and Alldata, aren't public. Manufacturers do publish warranty times, but only inside a bulletin covering one named operation, and we didn't go looking for one per repair here. Every labor number on this page is a market range rather than a calculated one.
We give no per-model table, because the variation between cars is the entire argument of the article.

Prices are ranges compiled in September 2026 for the US market and vary by region, vehicle and shop rate. Prices from $10 up are rounded to the nearest dollar, so $14.13 reads as $14 and $14.52 as $15. Below $10 they're exact. This article is general information, not advice about your specific vehicle. See the disclaimer.
