Head Gasket Replacement Cost: Owners Paid $1,200 to $5,500

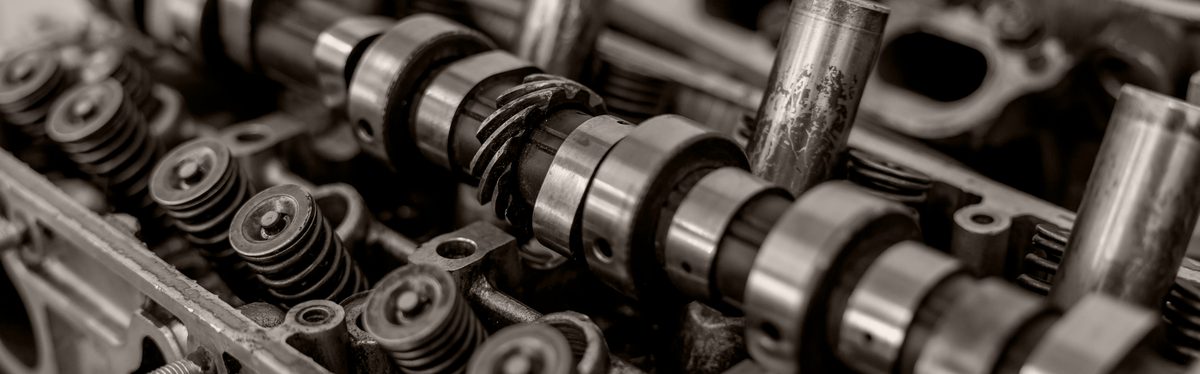

OilAndMiles.com - Head gasket replacement cost is the one figure where the quote and the part price have almost nothing to do with each other. The gasket is a stamped steel shim. The bill is what it takes to get to it: manifolds off, timing drive off, camshafts out on most modern engines, and the cylinder head lifted clear without disturbing anything it sits on.

What sends people here is usually white smoke at the tailpipe, or coolant going down with no puddle underneath.

That's why two cars with the same symptom get quotes that differ by a factor of four. Nobody is padding the higher one. The engines are simply not the same amount of work, and the difference was decided by the people who designed them.

Head gasket replacement cost: what owners reported

Repair estimators publish averages, but they don't publish the invoices behind them. Owner complaints filed with the National Highway Traffic Safety Administration sometimes do, because people describing a failure often say what it cost them.

We pulled every complaint on record for nine models across the 2010-2016 model years and searched them for head gasket mentions.

The nine were chosen because each has a head gasket reputation to test, which makes this a sample picked for the fault rather than a cross-section of what is on the road. Read the ratio as what these nine produced, not as a figure for cars in general.

Of 36,706 complaints, 324 named a head gasket. Thirteen of those carried a dollar figure written close enough to the mention to be about that repair, and six of those clearly priced the gasket job rather than something else in the same paragraph.

Seven owners wrote a price into the complaint itself, and these are all seven, not a selection. Six of them priced the gasket job. The last one is the car whose head had cracked, which is why it sits so far outside the others:

Published estimates land inside that range but describe it differently. Cost guides built from parts and labor hours quote $1,800 to $3,000 for a straightforward job and $3,500 to $5,000 or more where access is tight, which is the breakdown in our white smoke piece.

Both pictures are true of different questions. An estimate answers what the work should cost; the filings above answer what people were actually charged, including the jobs that went wrong. That's why the owner-reported range is wider at both ends.

The median of the clean gasket-only figures is about $2,800. Note where the last row sits and why: once the words cracked head enter the estimate, the number leaves the range entirely. One filing on the same model quotes $12,302 after coolant reached a cylinder and the engine failed internally.

Read the median against an estimator and the two methods land in the same place: RepairPal's national average for this job, revised September 3, 2026, is $2,572 to $3,386, and our $2,800 sits inside it. A page of national averages and seven invoices from owners arrive together, which is the strongest kind of agreement there is, because neither was checking the other.

One head or two, and why it doubles

This is the single biggest lever on the price, and it's fixed before you buy the car.

An inline engine, meaning most four-cylinders and inline sixes, has one cylinder head and therefore one head gasket. A V6, V8 or flat-four has two, one per bank.

Nobody replaces one gasket and leaves the other: the second is the same age, has seen the same heat, and reaching it means the same teardown again. So a V-engine head gasket job is close to two jobs.

On a flat engine that is worse again, because the heads face outward into a crowded engine bay rather than upward. Six reported figures can't show how much of a bill that accounts for, and ours don't try: the two flat-four jobs here sit at $2,000 and $5,500, and an inline-four Escape sits between them at $3,500. Six points can't be split into a band per engine.

What they can do is tell you which of four jobs you're being quoted:

Access is the second lever. A transverse engine in a front-wheel-drive car sits sideways with the back bank facing the bulkhead, and on some of them the accepted method is to pull the engine rather than fight for clearance. The hours owners are quoted move with it, and the spread is in the box below.

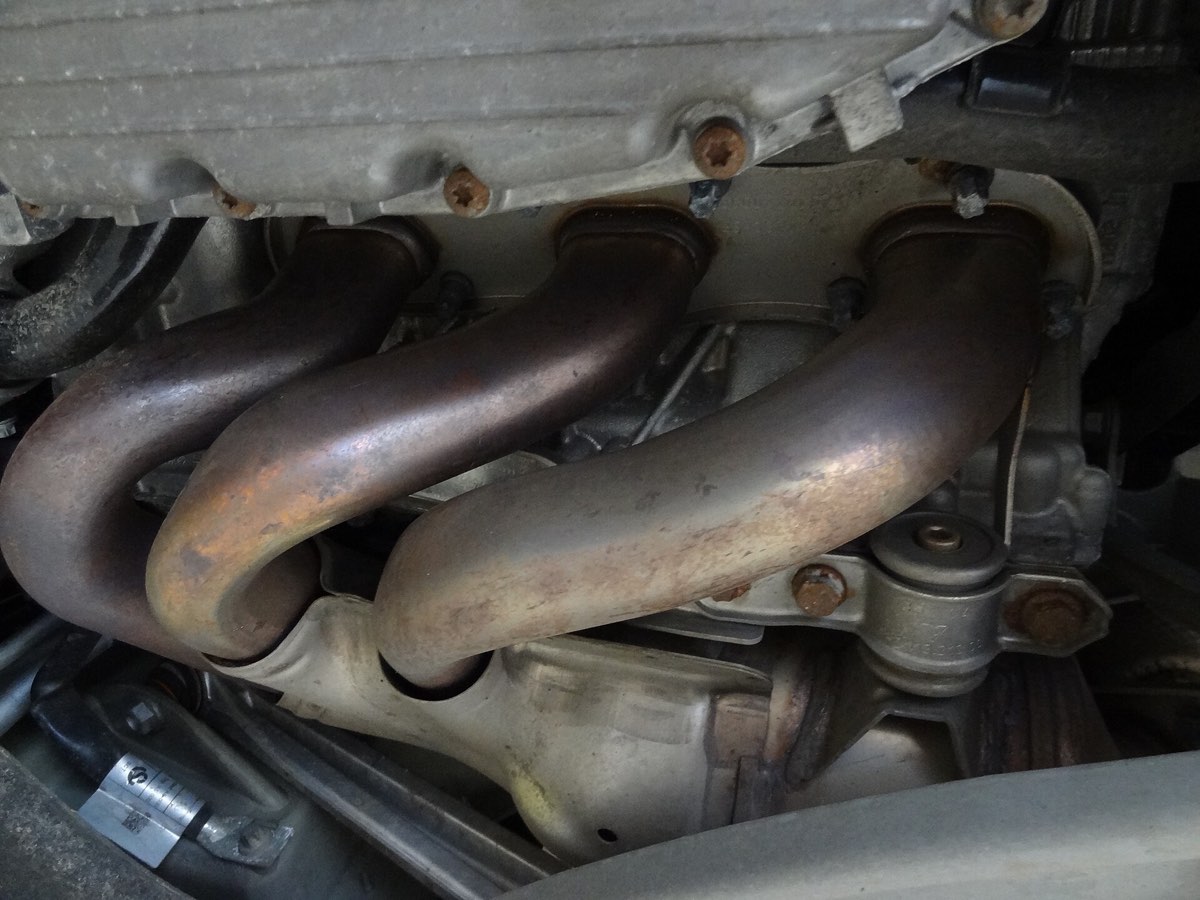

What comes off before the head does

The second bill: when the head isn't flat

A head gasket rarely fails on its own. It usually fails because the engine got hot, and the same heat that killed the gasket can warp the cylinder head. Aluminum heads, which is nearly all of them now, move more than iron ones did.

So once the head is off, it goes on a surface plate and gets measured for flatness. Three outcomes:

• The head is straight. Clean it, new gasket, new bolts, reassemble. This is the quote you were given.
• The head is warped but sound. It goes to a machine shop to be skimmed flat. Days, not hours, and it's billed on top.
• The head is cracked. It's replaced or exchanged, and the estimate roughly doubles. This is the moment a $2,600 job becomes a $5,500 one, and the shop genuinely didn't know before it opened the engine.

Any honest estimate for this work is conditional, and a shop that gives you a single firm number before the head is off is either padding it to cover the worst case or is about to call you mid-job. Ask which.

Losing coolant with no leak and no overheating

This is how a lot of head gasket failures actually present, and it is the version people misdiagnose for months.

The classic picture of steam, a temperature gauge in the red and white smoke is a late-stage failure. Earlier, the breach can be small enough that combustion pressure pushes a little gas into the coolant on every firing stroke without any coolant coming out anywhere.

The level in the reservoir falls, and there's no puddle on the driveway, because nothing left the engine. The coolant went out of the tailpipe as vapor.

If you're losing coolant and can't find the leak, the test that settles it costs a fraction of the repair. A block test uses a chemical that changes color in the presence of combustion gases in the coolant.

A shop can also pressurize the cooling system cold and watch whether it holds. Neither test requires taking anything apart.

The other tells: coolant that smells faintly of exhaust, a reservoir that burps or pressurizes quickly after a cold start, and white smoke that persists once the engine is warm, rather than clearing after a minute.

What the parts actually cost

A head gasket is $13 to $57 at the counter, and the manufacturer's own is $39 to $66. That's the part that failed, and it's the cheapest thing on the bill by a wide margin.

Almost nobody buys it alone. A set brings the valve cover gasket and the valve stem seals with it and runs $60 to $454, and the head bolts have to be new because they stretch as they're torqued, another $31 to $136. Set and bolts together are $91 to $590.

That's the parts side of a job the filings above put at $1,200 to $5,500.

So shopping for a cheaper gasket saves you almost nothing. Shopping for a shop with a lower hourly rate, or one that quotes the machine work separately instead of bundling a worst-case allowance into the headline number, is where the money actually is.

Where you buy moves the parts more than which brand you buy. These are the same part numbers, the same brands, read the same day at a chain counter:

Between 29% and 122% more for an identical part. On a job billed in thousands it's not the difference that decides the quote, but it's the one part of it a car owner controls.

Is it worth fixing at all?

At $2,600 against a car worth $4,000, this is the repair where people decide to stop owning the car. That's a legitimate answer, and the shop isn't the right person to ask.

Two things make the sum less obvious than it looks:

• You know this engine's history. The job replaces a known-bad part on a car that is otherwise a known quantity, which a replacement car won't come with.
• When it was caught changes what it is. Caught before an overheat, it's a repair. Caught after, it may already have taken the head, and sometimes the bottom end with it.

Four questions decide it, and a quote can be run down them one at a time:

What to do before the teardown

Five steps for testing a head gasket quote before you agree to it. All five happen before the engine is opened, which is the last point where you still have any leverage. 5 steps below:

1. Confirm it is the gasket before you authorize a teardown. A block test or a cooling system pressure test costs a small fraction of the repair and rules out the cheaper causes of coolant loss, and it's worth doing even when a shop sounds certain.
2. Ask how many cylinder heads the engine has. One or two is the largest single factor in your quote, and it takes one question to know which conversation you're in.
3. Ask what the quote assumes about the head. Specifically: does it include resurfacing, and what happens to the number if the head is cracked, because a shop that answers that clearly is a shop that has done the job before.
4. Get the labor hours, not just the total. Hours times rate is the whole bill, and two quotes that differ by $1,500 usually differ in the hourly rate or in what they assumed about the head, both of which you can ask about.
5. Decide against the car's value before the engine is open. Once it is apart, the leverage is gone and so is a chunk of the money, so work out your walk-away number first.

Common questions

How much does a head gasket replacement cost?

Owner complaints filed with NHTSA report $1,200 to $5,500 for the gasket job itself, with a median around $2,600. Filings that describe a cracked head or internal engine damage report $7,500 and above. The gasket is a small part of any of those figures; the labor is nearly all of it.

Why is head gasket replacement so expensive?

Because reaching the gasket means dismantling the top of the engine: intake and exhaust manifolds, the timing drive, usually the camshafts, then lifting the cylinder head off. On some transverse engines the accepted method is to remove the engine entirely. The part is cheap and the access isn't.

Can you lose coolant from a head gasket without overheating?

Yes, and it's common early on: a small breach lets combustion gas into the coolant and pushes coolant out as vapor through the exhaust. The reservoir level falls with no puddle anywhere and the temperature gauge stays normal. A block test detects combustion gases in the coolant without taking anything apart.

Does a V6 head gasket cost twice as much as a four-cylinder?

Close to it. A V6 or V8 has two cylinder heads and two head gaskets, and both are replaced together because reaching the second one means repeating the same teardown. An inline engine has one of each.

Is it worth replacing a head gasket on a high-mileage car?

It depends on whether the failure was caught before an overheat and on what the car is worth. An intact head on an inline-four in a car you were keeping usually is. A cracked block, or a quote past the car's value, usually isn't.

How long does a head gasket replacement take?

Reported book times run from roughly 10 hours on an older engine with room around it to 18–21 hours where the engine has to come out. Machine work on the head adds days rather than hours, because the head leaves the shop.

Figures are compiled in September 2026 for the US market and vary by region, vehicle and shop rate. Prices from $10 up are rounded to the nearest dollar, so $14.13 reads as $14 and $14.52 as $15. Below $10 they're exact. The shop behind this site is real and isn't in the United States; engine mechanics carry across markets, dealer labor rates don't. This article is general information, not instruction. See the disclaimer.
