A transmission output speed sensor pulled out of the tail housing, its connector hanging beside it.

P0720 Code: Output Speed Sensor Causes and Free Recalls

Short answer: A P0720 code means the computer lost, or stopped trusting, the output speed sensor signal. On the trucks owners report it on most, the sensor sits on a leadframe that a Ford recall replaces free on a 2014 F-150 with the codes stored. Without a recall, a separate sensor on a 2014 Nissan Rogue costs about $106–$311, parts and labor, and a Ford leadframe costs more, since the part that holds the sensor sets the bill.

Iqbal Taher Written by Iqbal Taher Certified engine mechanic and parts trader since 2011
Fact checked
Updated

Key takeaways

  • Safety: Pull over and have it towed if the transmission drops a gear at speed, holds one gear or shifts harshly.
  • Ask for the connector and wiring to be checked before anyone quotes a sensor.
  • A light that goes out after a restart isn't a repair, so have the stored codes read anyway.
  • Other 2011–2017 F-150s may fall under a Ford recall or program, so ask the dealer in writing.

A P0720 code is the OBD-II code for the transmission's output speed sensor circuit: the computer stopped getting a believable signal from the sensor that reads the output shaft's speed. It shows as a check engine light or a wrench light, and on some trucks after a hard downshift.

PO720 with a letter O is a common typing slip for the same code, and some scan tools add a suffix, as in P0720-00 or P072000. On Fords it often comes with P0722, and on Infinitis with P0500.

What does P0720 mean?

It means the output speed signal went missing or stopped making sense to the computer that runs the transmission. Ford's recall filings describe the fault as an intermittent loss of the output shaft speed sensor's signal to the powertrain control module, the computer that decides the shifts.

Codes Powertrain Transmission Generic OBD-II

Output speed signal lost

Output Shaft Speed (OSS) Sensor Signal

P0720

What the computer saw

The output speed signal went missing or stopped making sense to the computer that runs the transmission.

Code
P0720
System
Powertrain
Area
Transmission
Standard
Generic OBD-II
Checks
Whether the output shaft speed signal stays believable

What it doesn't prove

It doesn't prove a sensor alone is bad. On the two models owners report most, the repair isn't a sensor on its own.

Wording from Ford recall 24V-444.

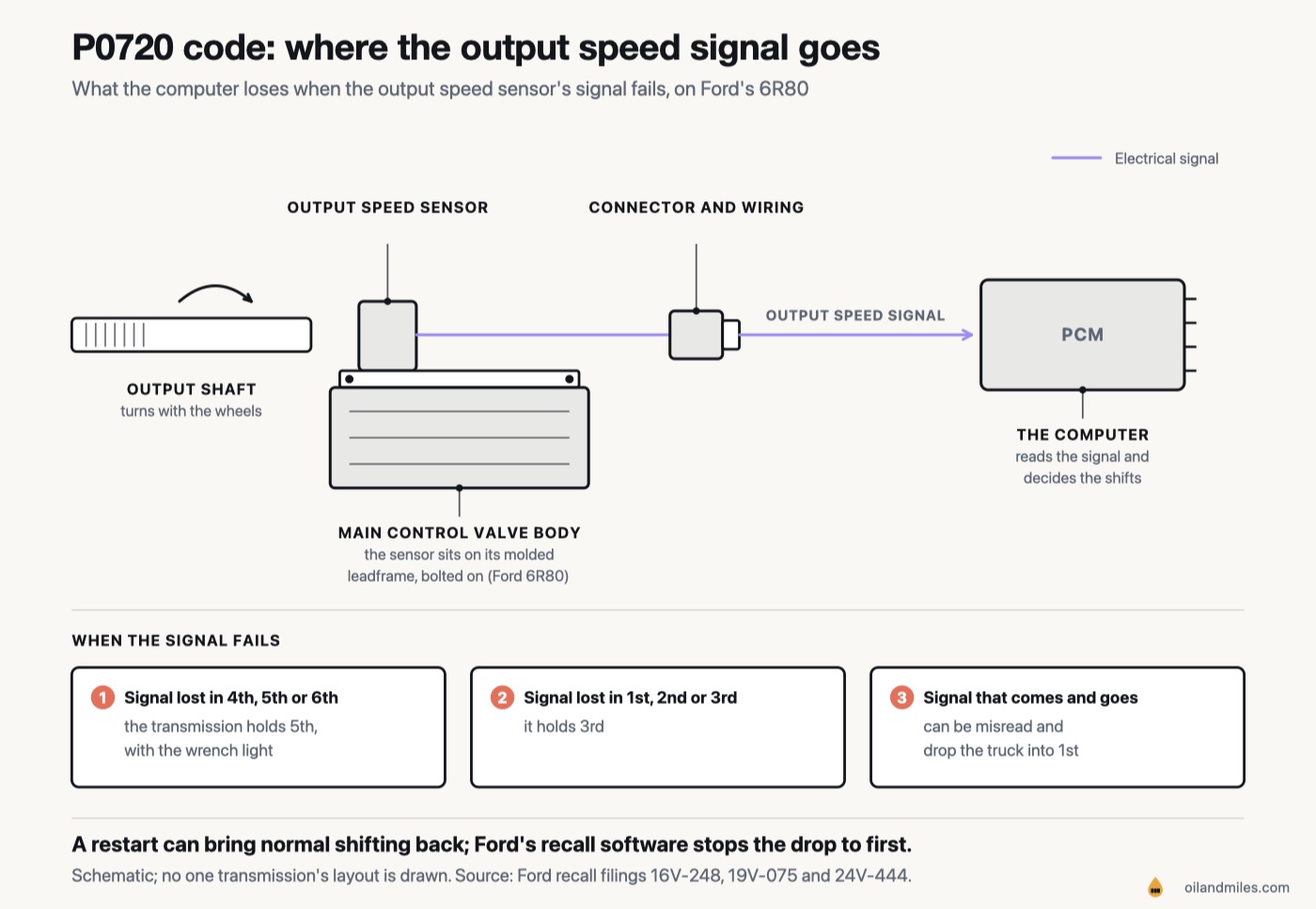

The output shaft turns with the wheels, so its speed tells the computer how fast the car is moving. Bosch, a maker of transmission sensors, says the computer uses that signal to set shift pressure and choose the gear, which is why a P0720 can come with a hard or sudden downshift.

P0720 code: an x-ray side view of a rear-drive automatic transmission showing the output speed sensor on its leadframe on the main control valve body, reading a toothed ring on the output shaft, with the connector and wiring running to the computer
On a 6R80, the sensor sits on the valve body, where it reads the toothed ring on the output shaft. Diagram: Oil & Miles
Use this image

Free to republish under CC BY 4.0: credit Oil & Miles and link to this page. The snippet does both.






Can you drive with a P0720 code?

Not far, and on a 2011–2014 F-150 not at all until a dealer has run the VIN, because Ford's recalls cover a sudden downshift into first at any speed. If it downshifts on its own, pull over where it's safe and have it towed rather than drive on.

The dangerous case is a signal that comes and goes. Ford says it can be misread and cause an abrupt downshift to first gear, and at speed the rear tires may slide or lock up until the truck slows.

Stop and have it towed if:

  • It drops a gear on its own at speed. That's the case Ford says can make the rear tires slide.
  • It holds one gear. The 2015 Q50 manual locks the transmission in a forward gear in fail-safe.
  • Shifts turn harsh or the power drops. Infiniti's Q50 bulletin lists both with the code.

A restart can bring normal shifting back, according to Ford's filings, but that isn't a repair. Neither recall carries NHTSA's do-not-drive warning, but the downshift can come at any speed.

What owners report

A 2013 F-150 owner wrote that the speedometer suddenly and rapidly fluctuated between 40 and 70, then transmission abruptly dropped. A 2016 owner described going from 6th gear directly to 2nd gear while traveling at highway speeds.

NHTSA complaints 11171588 and 11716521, in the owners' own words, read September 25, 2026.

What are the symptoms of a P0720 code?

A sudden downshift, a transmission stuck in one gear, a jumping speedometer or harsh shifts, depending on how the signal failed and on the car. Ford's filings say a complete loss holds the truck in a fixed gear, while a signal that comes and goes can trigger the downshift.

These are the four signs the documents and owner complaints name:

  • A hard or sudden downshift. Ford's recall filings describe it on the F-150, sometimes all the way to first gear.
  • A transmission stuck in one gear. The transmission falls back to a fixed gear, so the car still moves but won't shift normally.
  • A speedometer that jumps or drops. Owners describe it alongside the downshift in their complaints.
  • Harsh shifts or a lack of power. The symptoms Infiniti's Q50 bulletin lists with the code, and if it feels more like slipping, our transmission slipping page covers that.

Complaints naming eachOut of 165 that name P0720

A downshift or a drop to a low gear 85
At highway speed 75
The speedometer 45
Limp mode (reduced power) 32
Rear wheels locking or skidding 23

How to read it: keyword mentions, not confirmed causes, and 124 of the 165 are F-150s. Bars are scaled to the longest.

From NHTSA consumer complaints received through September 30, 2026, 2010–2025 model years, every written form of the code. P0722 comes with it in 40 of the 135 Ford complaints, and P0500 in 14 of the 23 Infiniti ones.

Is there a recall for P0720 on a Ford F-150?

Yes, on some Fords: Ford recalled 2011–2014 F-150s with the 6R80 over the output speed signal, and on a 2014 F-150 the dealer fits a leadframe free when P0720, P0722, P0731 or P1500 is stored. Federal law keeps it free unless the truck was sold new over 15 years before the recall.

Ford's two coverage programs for 2011–2013 trucks have mostly run out. For a 2015–2017 F-150, Ford's range sensor recall and program sit on the same leadframe but name other codes, so ask the dealer in writing whether either applies.

A recall is a free repair under federal law, and a bulletin only tells dealers how to fix a fault. A coverage program is Ford's own offer, with its own time and mileage limit.

What causes a P0720 code?

A bad connector or wiring, the sensor, the control valve, cracked solder on the leadframe or the computer's ground, and more often the parts around the sensor than the sensor alone. P0720 alone confirms none of them, because it says only that the output speed signal went missing or stopped making sense.

Low fluid and metal filings on a magnetic sensor tip get blamed too. No carmaker document names either for P0720, so a shop should test before it blames them.

A bad connector or wiring

The connector joins the sensor's circuit to the harness that runs to the computer, and on the F-150's 6R80 it sits inside the transmission. Ford lists contamination, a short to ground, corrosion and connector pins pressed out of shape among the causes behind three of its F-150 recalls.

Nissan's bulletin for one CVT, a gearless automatic, looks for moisture or corrosion on the sensor's pins first, then dries the connector and replaces the sensor. So ask for the connector to be checked before a sensor is quoted.

The output speed sensor itself

The output speed sensor reads the output shaft as it turns and sends its speed to the transmission computer. Ford lists wrong outputs from the sensor itself among its recall causes.

On an F-150 it comes on the leadframe, and on a Q50 Infiniti replaces the control valve instead, as where the sensor sits explains. On the Rogue's CVT it's a separate part, and Nissan's bulletin replaces it when moisture or corrosion is on its pins, after drying the connector.

The control valve and module

The control valve, or valve body, is the block of passages that steers fluid to each gear. On some transmissions the sensor comes with it, which is why a sensor fault can mean a new control valve.

On the Q50, when the diagnosis points at the sensor, Infiniti's bulletin says to replace the control valve, not the sensor. Nissan did the same for one compact without ABS.

Cracked solder on the leadframe

The leadframe carries small circuit boards, and a cracked solder joint on one can break the sensor's signal on and off. Ford traced its first recall to exactly that.

The cracks came from a supplier's soldering equipment, and a later recall, 19V-075, widened the first one to more trucks. A dealer checks by VIN whether yours is one, and each document lists the build dates.

Where is the output speed sensor located?

Inside the transmission on the two models owners report P0720 on most, and on those two the repair isn't a sensor on its own. On other cars, like the Rogue below, it can be a separate part, and where it sits decides what the repair is:

  • Ford F-150 and other 6R80 automatics. On the molded leadframe, the electrical frame bolted to the main control valve body inside the pan. Ford replaces the whole leadframe, part AL3Z-7G276-D.
  • Infiniti Q50, 7-speed automatic. Inside the transmission. If the diagnosis leads to the sensor, Infiniti's bulletin says to replace the control valve, not the sensor.
  • Nissan Rogue CVT, 2014. A separate secondary speed sensor with its own connector, part 31935-1XF00, which Nissan's bulletin replaces after drying the connector.

A leadframe is the molded electrical frame inside the transmission that carries its sensors' circuits. A control valve, or valve body, is the block of passages that steers fluid to each gear.

A transmission valve body on a rag with its molded plastic wiring frame, solenoids and built-in sensors

A valve body and its leadframe

On a Ford 6R80 the sensor sits on a molded frame like this, inside the pan. AI illustration by Oil & Miles

How do you fix a P0720 code?

By reading every code and running the VIN before buying a sensor, because on the two models owners report it on most, the repair isn't a sensor on its own. To fix a P0720 code, work through the 6 steps below, in order:

  1. Read and save every code. P0722, P0731 or P1500 with it on a Ford, P0500 on an Infiniti. The dealer needs the stored codes to diagnose it, and on a 2014 F-150 they decide whether the recall replaces the leadframe.
  2. Run the VIN. Our free VIN checker lists your model year's recalls and owner complaints, and NHTSA's VIN search shows which are open, but programs show in neither, so a Ford dealer checks the programs by VIN and build date.
  3. If a recall applies, let the dealer follow its order. On Ford's 24S37, for example, stored codes mean the dealer fits a new leadframe before the reprogram. With no codes stored, the software update is the whole recall.
  4. Check the connector and wiring. Contamination, corrosion and damaged pins are on the carmakers' own cause lists.
  5. Ask which part holds the sensor. A leadframe on a 6R80, the control valve on a Q50, a separate sensor on a 2014 Rogue CVT. Don't accept a sensor-only quote without the answer.
  6. Expect firm shifts afterward. Ford warns of firmer shifts for several days while the transmission relearns after the reprogram.

A light that goes out after a restart isn't a repair. Ford's recall filing says a complete loss of the signal sets a code with a wrench light, and a restart can bring normal shifting back.

If the code comes back after a recall repair on a 2014 F-150, ask the dealer whether Ford's 26S45 recall applies. It redoes software that wasn't installed correctly, free.

If no recall applies, ask the shop to meter the wiring and the sensor against the carmaker's figure for that car and check the computer. On an Allison automatic, its bulletin adds the computer's ground after those checks.

If P0700 is stored too, it's the transmission computer asking for the light, and our P0700 guide covers what that second code means. Any other code can be decoded with our check engine light codes guide, where a 7 in the third place marks the transmission.

What to say to the shop

When a quote names a part before any test has run:

“I have P0720 and these other codes stored: [codes]. Before you replace a sensor or a transmission part, can you check my VIN for recalls and programs, check the connector and wiring, and tell me which test result points at the part you recommend?”

A good answer: a recall check by VIN first, then a test result that names the part.

How much does it cost to fix P0720?

About $106–$311 for a separate sensor on a 2014 Nissan Rogue, up to $556–$729 for a Ford leadframe on a 2014 F-150, parts and labor at an independent shop. Which part holds the sensor sets the bill, and a recall can make it free.

Check for a recall or a bulletin before a part is ordered, because either can change the job. On a Q50, ask the dealer to price the control valve Infiniti's bulletin names rather than a sensor, and on one Mustang engine a Ford bulletin replaced the whole manual transmission under warranty.

Both figures use the carmaker's own hours, as how we price repairs explains, so a shop's labor guide can run longer. Ask for the test result, the hours and the rate on the written quote, and whether the diagnosis fee comes off if you approve the repair.

Is P0720 different on an Infiniti or Nissan?

Yes, on some Infinitis: on the 2014–2015 Q50, when the diagnosis points at the sensor, the fix is the control valve, not the sensor. Infiniti's bulletin ITB19-040 names P0720 with harsh shifting or a lack of power, and no recall or extended coverage goes with it.

Owners who name P0720 on an Infiniti often name P0500 too, the vehicle speed code, and some report the car holding a low gear, unable to go past 20–40 mph. On a Nissan, the bulletins dry the connector and replace a separate sensor on a 2014 Rogue CVT, or replace the control valve on one compact.

No Nissan or Infiniti safety recall in NHTSA's file names the output speed sensor, and Nissan's one inspection for it covered only cars still on dealer lots. Our guide to CVT transmission problems covers the rest of Nissan's CVT record.

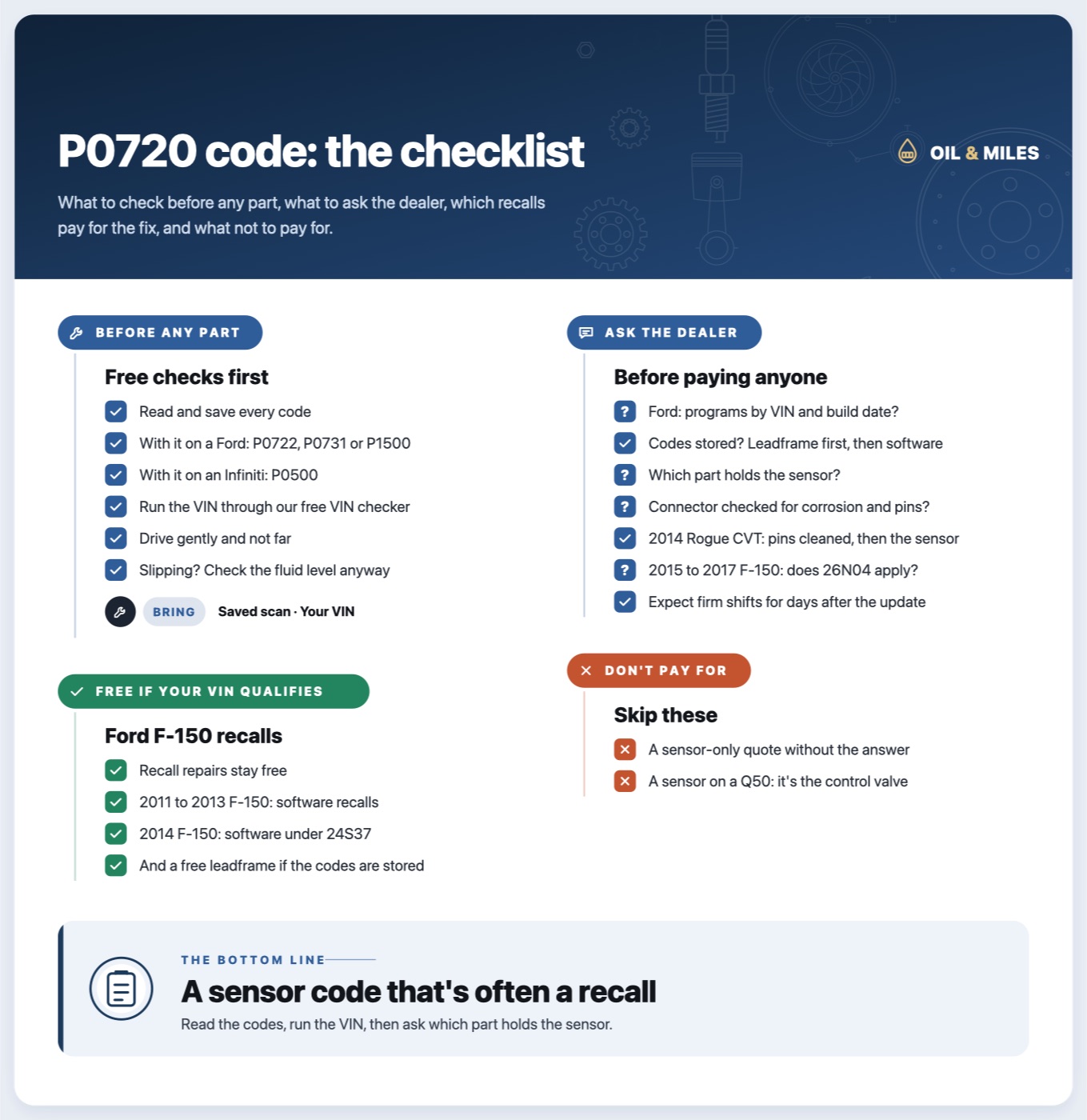

Checklist: read and save every code, run the VIN and don't drive far, 2011 to 2014 F-150 recalls cover software and, on the 2014, a free leadframe with the codes stored. Ask the dealer to check the programs by VIN, follow the recall's order, check the connector and say which part holds the sensor. Don't pay for a sensor-only quote or a sensor on a Q50.
Everything on this page as one checklist: check, covered, ask, or skip. Infographic: Oil & Miles
Use this image

Free to republish under CC BY 4.0: credit Oil & Miles and link to this page. The snippet does both.






From the carmakers

What do Ford, Infiniti and Allison say about P0720?

Ford names the danger, Infiniti names the part, and Allison's fix isn't a transmission part at all. Each document lists its program terms and build dates.

Ford

Recall 24V-444

Some vehicles may experience an intermittent loss of the transmission Output Shaft Speed (OSS) sensor signal to the Powertrain Control Module (PCM), potentially resulting in a temporary, unintended downshift into first gear.Ford Motor Company, June 2024

Covers
2014 F-150 built June 17, 2013 to December 23, 2014 (552,188 trucks).
Fix
Updates the powertrain control module software for an intermittent loss of the output shaft speed sensor signal. If P0720, P0722, P0731 and/or P1500 are stored, the 6R80 molded leadframe is replaced as well.
Who pays
Free recall repair
Infiniti

Bulletin ITB19-040

If the diagnosis leads to output speed sensor replacement, replace the control valve. Do NOT replace the output speed sensor.Infiniti, November 2019

Covers
2014–2015 Q50 (V37), not the Q50 Hybrid.
Fix
With P0720 stored and the diagnosis pointing at the output speed sensor, replace the control valve and do not replace the sensor.
Who pays
Info only
Allison

Service information letter SIL 11-TR-26

In some cases, removing the TCM housing from the chassis ground resolved DTC P0720.Allison Transmission, June 2026

Covers
All 1000, 2000, 3000 and 4000 Series 6th generation Allison transmissions with Hall effect sensors.
Fix
Isolates the TCM housing from chassis ground with nylon washers and heat-shrink tube for intermittent P0720, after the standard checks.
Who pays
Info only
  • Ford coverage programs, 2011–2013 F-150. Two programs ran 10 years or 150,000 miles from the warranty start, so most of those trucks are now past them.
  • Ford's first leadframe recall. The solder cracks came from a supplier's soldering equipment that wasn't kept clean between August and December 2011, and a later recall, 19V-075, widened it to more trucks.
  • 2015–2016 Mustang 5.2. With P0720 and P0722, one Ford bulletin replaced the whole manual transmission under the new-vehicle warranty.

Conclusion

What to do next about a P0720 code

Save every stored code and have a dealer run your VIN, since a Ford recall may replace the part free. If none applies, ask whether the leadframe, the control valve or a sensor is at fault. Until then, tow it if it drops a gear at speed, holds one gear or shifts harshly.

Oil & Miles checks each step here against Ford's recalls and programs, Infiniti's, Nissan's and Allison's bulletins and owners' complaints.

P0720 · guides for this code

What to read next about P0720

Common questions

Asked most often

Can low transmission fluid cause a P0720 code?

No carmaker document links the two: Ford, Infiniti, Nissan and Allison put P0720 down to the signal's connection, the sensor's carrier or the module. Having a shop check the fluid level is still a cheap first step, since many of these transmissions have no dipstick.

What does P0720 with P0500 mean?

P0500 is the vehicle speed code, and the pair shows up in 14 of the 23 Infiniti complaints naming P0720, 10 of them on the 2014–2015 Q50. Infiniti's bulletin for that car replaces the control valve rather than the sensor.

What is P0720 on an Allison transmission?

The same output speed sensor circuit code. Allison's June 2026 bulletin reports more intermittent P0720s on its sixth-generation automatics and, once other causes are ruled out, isolates the computer's case from the chassis ground.

Sources

  1. Bosch Mobility, transmission sensors, on what the speed signal is used for. Bosch, undated, read September 30, 2026
  2. Ford recall 24V-444 (24S37), with recalls 16V-248, 19V-075, 19V-433, 26V-378 and 26V-237, and their NHTSA filings. Ford via NHTSA, read September 25, 2026
  3. Ford program 19N01, Supplement 4, August 17, 2021, with 16N02, 26N04 and bulletin 16-0085. Ford via NHTSA, read September 25, 2026, and 19N01 read November 2, 2026
  4. Infiniti bulletin ITB19-040, and Nissan bulletins NTB14-019 and NTB10-150a, with Nissan's 2014 output speed sensor inspection PC260. Nissan via NHTSA, read September 25, 2026
  5. Allison SIL 11-TR-26, P0720 on sixth-generation automatics. Allison Transmission via NHTSA, read September 25, 2026
  6. 2015 Infiniti Q50 owner's manual, section 5, on fail-safe. Infiniti, read September 25, 2026
  7. PartsTech's September 2025 survey of about 700 US independent shops, as reported by Ratchet+Wrench (August 19, 2026), for the $100 to $139 an hour that nearly half of them charge. Ratchet+Wrench, read October 17, 2026
  8. NHTSA's consumer complaint database, every complaint naming the code, 2010–2025 model years. NHTSA, read September 25, 2026
  9. NHTSA recall file, for the absence of a Nissan or Infiniti recall naming the output speed sensor. NHTSA, read September 25, 2026
  10. 49 U.S.C. 30120(g), for how long a recall repair stays free. US Code, read September 26, 2026

AI illustration by Oil & Miles

How this was compiled

The cars in the cost section are the F-150 and the Rogue, the cars on this page with a carmaker time for the job. The Q50's control valve is priced only by the dealer, because the catalog lists no valve body or transmission control module for the 2015 Q50 3.7L.

Labor is a carmaker's booked time times $100–$139 an hour, the independent-shop rate used across this site. Parts are RockAuto's known-brand listings for each car plus the shop markup. The complaint counts match the code in every written form, P0720, PO720 and P072000. Counts of words such as "downshift" or "highway" are mentions, not confirmed causes.

What we didn't do

We didn't test a transmission or read a code ourselves. We found no carmaker document that names P0720 for a 2015–2017 F-150, so we don't say whether Ford's newer program covers it. We didn't read Mercedes' or Hyundai's documents beyond the codes they name. We didn't check whether Ford's 24S37 leadframes are in stock now, and its June 2024 dealer notice held those repairs until parts arrived.

We found no carmaker document tying P0720 to a worn tone ring or to cruise control, ABS or traction control lights, so they aren't listed. The same goes for a separate fee to diagnose the code.

Prices are ranges compiled in November 2026 for the US market and vary by region, engine and shop rate. Prices from $10 up are rounded to the nearest dollar. Below $10 they're exact. This article is general information, not advice about your specific vehicle. See the disclaimer.
