0W-20 vs 5W-30: What Happens If You Use the Wrong Grade Once

The question usually comes from someone standing in a parking lot holding the wrong bottle, or from someone whose last shop used "whatever was in the bulk tank." The panic is understandable and mostly misplaced, but it's worth separating the harmless case from the one that costs money.

Start with what the numbers mean, because half the confusion comes from reading them as one measurement rather than two. They're printed on the back of every bottle beside the approvals, and what else is on that label decides more than the grade does.

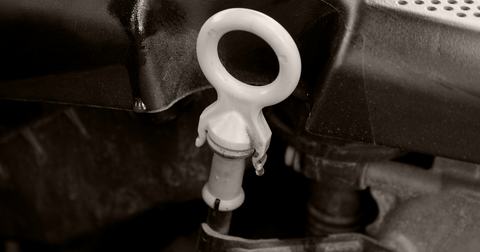

Arrived here because the shelf was empty and you're holding the wrong bottle? The short version, with the substitutions ranked, is in what you can use instead of 0W-20.

0W-20 vs 5W-30: what do the numbers describe?

An oil grade like 0W-20 or 5W-30 carries two numbers, and the numbers on oil mean two different things:

• The first number, with the W. W is for winter, not weight, and it describes how the oil behaves when cold: how easily it pumps around the engine in the seconds after a cold start. A lower number means it stays fluid at a lower temperature, so 0W flows at a lower temperature than 5W.
• The second number. This is the grade at operating temperature, around 100 °C, and a measure of how thick the oil still is once everything is hot, which is when the engine is doing almost all of its living. A 30 is thicker when hot than a 20.

Two bottles of one brand make the gap between 0W-20 and 5W-30 concrete. Mobil publishes the figures for both of these, so neither is a number we had to take on trust:

• Mobil 1 Advanced Fuel Economy 0W-20. 8.4 mm²/s at 100 °C, and it still pours at −48 °C.
• Mobil 1 Advanced Full Synthetic 5W-30. 10.7 mm²/s at 100 °C, and it still pours at −42 °C.
• What the pair shows. Hot, the 5W-30 is about a quarter thicker. Cold, the 0W-20 stays pourable six degrees further down. One brand, so only the grade differs; any brand publishing both would show the same shape.

They differ in both, but not equally. In a temperate climate most drivers will never feel the cold-start difference.

The difference when hot is the one the engine feels.

What happens if you put 5W-30 in an engine that asks for 0W-20?

This is the more common mistake and the less dangerous one. You've gone slightly thicker than the designer intended.

What happens if you use 5W-30 instead of 0W-20 is mostly small, and this is what you may notice:

• A small fuel economy loss. Real, and easily lost in the noise of traffic and weather. Manufacturers specify thin oils partly to meet economy targets, and the size of the gap is set out below.
• Slower oil pressure on very cold mornings. Only meaningful if you live somewhere that gets genuinely cold. In a hot climate this is a non-issue.
• On some engines, variable valve timing complaints. This is the one worth knowing about. Modern VVT systems move cam phasers using oil pressure through narrow passages, and some are tuned tightly enough around a thin oil that a thicker one makes them sluggish. On a handful of engines that's enough to trigger a check engine light with a cam timing correlation code.

The grade going into the engine

What you won't get is sudden damage. If you have one fill of 5W-30 in a 0W-20 engine, drive it normally and put the right oil in next time.

The 1% to 3% figure that circulates for this has no source we could find. The standard does set a real number: to carry the license on the front of the bottle, an oil has to clear a minimum Fuel Economy Improvement against a reference oil in a defined engine test:

The bar sits 0.7 points apart in both categories. Read that carefully, because it's not a promise that a 20-grade saves you 0.7%.

It's the minimum each grade must clear against the same reference oil to be licensed at all, measured on a test stand rather than on your commute.

What it does tell you is the scale of the thing being argued about.

What happens if you put 0W-20 in an engine that asks for 5W-30?

This is the direction that deserves more caution, because you've gone thinner than the engine was designed around.

At operating temperature, the oil's job at the crankshaft bearings is to hold the metal apart with a film. How well it does that under heat and load is roughly what the industry measures as HTHS, high temperature, high shear viscosity.

A 20-grade sits lower on that scale than a 30-grade, by design.

Those are the limits SAE J300 sets, and the two hot ranges don't overlap at any point. We put the neighboring grades beside these in what to use instead of 0W-20.

For a healthy engine in mild driving, running a grade thin is unlikely to cause a dramatic failure. The conditions where the wrong, thinner oil starts to matter are specific, and they're worth taking seriously:

• Sustained high load, meaning towing, mountain passes, loaded roof racks, long climbs in hot weather.
• Turbocharged engines, where the turbo bearing sees far higher temperatures than the oil pan ever does.
• Hot climates, where the oil never really cools down between trips.
• High-mileage engines with bearing clearances that have already opened up, where a thinner oil means lower pressure at idle.

If any of those describe your driving, don't run thinner than the manual asks for. The failure mode is neither dramatic nor immediate: accelerated wear that shows up years later as an engine that rattles on start-up and burns oil.

How would you know you're on the wrong grade?

Mostly you can't. Four signs can point to the wrong oil grade, and the last one is the only reliable one:

• Too thick shows up within a tank, or not at all. Slower oil pressure on a genuinely cold morning, and on a handful of engines a check engine light carrying a cam timing correlation code, because the phasers are moved by oil through narrow passages.
• Too thin shows up in years, not weeks. The failure is accelerated wear, and it surfaces later as an engine that rattles on start-up and burns oil. There's no early warning to wait for, which is the whole reason the thin direction is the one to take seriously.
• Burning oil isn't the tell people think it is. GM's own service bulletin treats a quart in 2,000 miles as an accepted rate on a car under warranty with less than 36,000 miles on it, so consumption alone proves nothing about your viscosity. What makers actually allow is a number worth knowing before anyone quotes you for it.
• The invoice is the only reliable check. Every symptom above is either invisible or has three other explanations. The grade that went in is written down, it takes five seconds to read, and it's the one piece of evidence that can't be argued with.

If you're hunting a noise or a light that appeared the same week you changed oil, the grade is an unlikely culprit and the oil level is a likelier one.

Can you mix them?

Yes. Both are engine oils built to the same broad standards, and mixing them in an emergency won't curdle anything or cause harm.

You end up with something in between: add a liter of 5W-30 to an oil pan of 0W-20 and you've effectively got a slightly thicker 0W-20.

Running low on oil is worse than running slightly the wrong grade, every time. If you're a liter down on a highway and the only bottle in the shop is the other viscosity, buy it and use it.

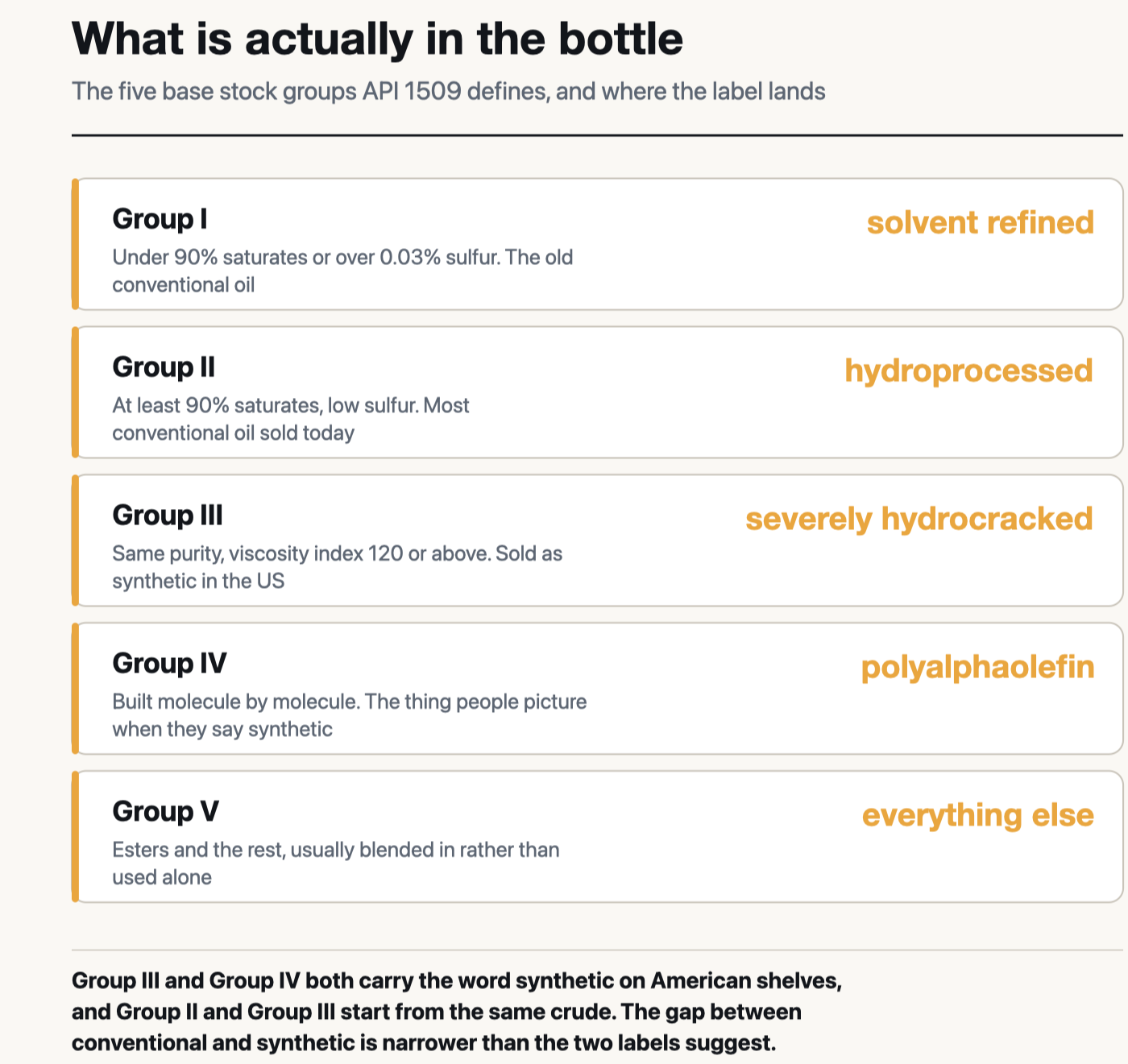

The document that governs this is API 1509, titled Base Oil Interchangeability Guidelines, and it's written for blenders rather than drivers: it sets the testing a marketer has to do before substituting one base stock for another and keeping its license. Its own introduction says that at modern additive levels, many of the base oil differences are overwhelmed by the additive performance package.

That's why two licensed oils mix without drama, whatever they were built from.

Which mistake matters more than the grade?

Viscosity gets all the attention because it's printed on the front of the bottle in large type. The specification on the back matters more.

An oil can be exactly 0W-20 and still be wrong for your engine if it doesn't carry the approval the manufacturer requires: API SP, ILSAC GF-6A, dexos1, or a manufacturer's own code. Those approvals cover detergency, deposit control, and on modern turbocharged direct-injection engines, protection against low-speed pre-ignition, which is the failure mode that breaks pistons.

Getting the viscosity right and the approval wrong is the more expensive error of the two, and it's far less discussed. We say more expensive rather than putting a figure on it because we couldn't trace one: what circulates is engine-builder guidance, not a study we were able to read.

We cover exactly how to decode those markings in how to read an oil bottle.

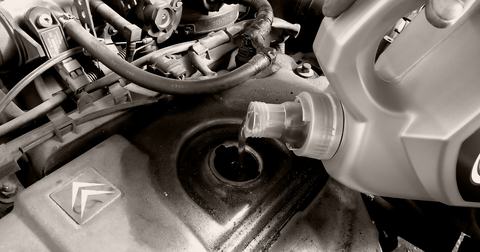

Mixing grades is one question; mixing types is another one people ask in the same breath. Whether you can mix synthetic and conventional oil has a clearer answer than this one does.

What should you do about a wrong fill?

After a wrong oil fill, follow these three rules, in order:

1. Follow the manual and the oil filler cap. If they disagree, follow the manual. The cap is a summary, sometimes of a different engine variant.
2. If you filled the wrong grade once, do nothing dramatic. Drive normally, avoid towing and hard sustained load, change it at the next service and put the correct grade in.
3. If you've been running the wrong grade for years, switch back at the next change. There's no flush needed and no transition period. If the engine has started using oil or knocking on start-up, mention it to a mechanic. That's a condition to investigate, not something a change of viscosity will reverse.

One more thing worth doing while you're thinking about it: check how long the oil has been in there, not just what grade it is. On most cars the interval is a bigger lever on engine life than the viscosity argument ever was.

Common questions

Asked most often

Can I use 5W-30 instead of 0W-20?

For one fill, in normal driving, it won't damage a healthy engine. Expect a small fuel economy loss. Some engines with tightly tuned variable valve timing can log a fault code on a thicker oil, so switch back at the next service.

What happens if I put the wrong oil in my car?

Nothing dramatic straight away. Going thinner than specified is the direction that matters, because the oil film at the bearings is weaker under heat and load.

Is 5W-30 thicker than 0W-20?

Yes, at operating temperature. The second number is the grade when hot, which is when the engine is doing almost all of its living.

Can I mix 0W-20 and 5W-30?

Yes. You end up with something in between. Running a liter low is worse than running slightly the wrong grade, so in an emergency use what is available.

Does using the wrong oil void a warranty?

It can, particularly if the oil doesn't carry the approval your manufacturer names. Getting the approval wrong is the more expensive mistake of the two.

General information about engine oil grades, not advice about your specific vehicle. Where anything here differs from your owner's manual or the manufacturer's approval list, follow the manufacturer. See the disclaimer.
