Blend Door Actuator: Symptoms, Location, Reset and Cost

You turn the knob to hot and get cold air, or the A/C blows warm on one side only, sometimes with a faint clicking behind the dash. Those are the classic signs of a bad blend door actuator, the electric motor that moves a flap inside the heater box.

The catch is that the motor may not be the broken part. Ford's own bulletin has dealers turn the door by hand before they order an actuator, because a door that binds needs the heater box out, not a new motor.

Below: the symptoms, the safety question, the actuator-or-door test, where it sits, the reset and the part price for 13 common cars. The knob on the dash is only a request, after all; the actuator is the one that carries it out.

What does a blend door actuator do?

It moves the blend door, a flap inside the heater box that decides how much air passes through the heater core. The heater core is a small radiator filled with hot engine coolant, so the more air it lets through, the warmer your vents get.

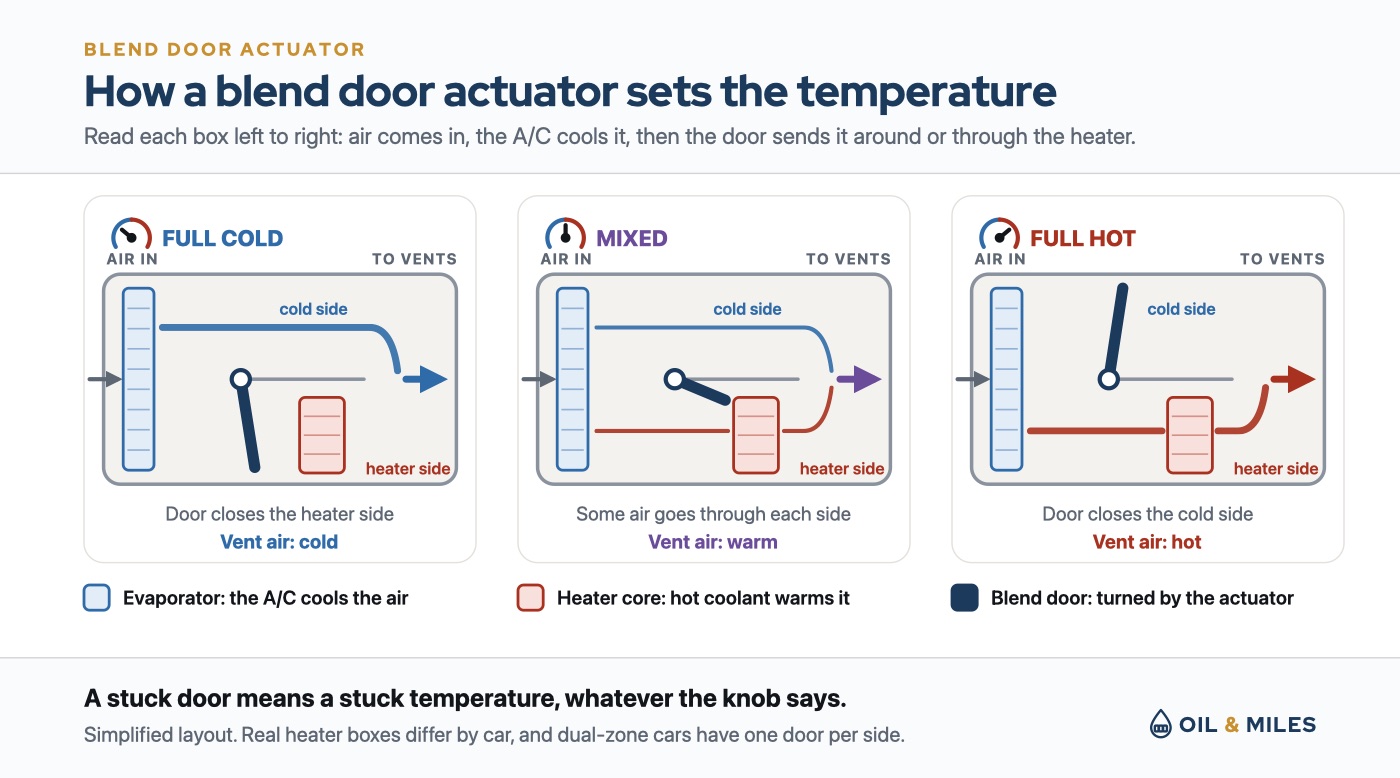

Air from the fan first crosses the evaporator, the part the A/C makes cold, and then meets the blend door. Swing it fully one way and you get heat, fully the other and you get A/C; anywhere between is a mix, which is where the name comes from.

A car can have several actuators behind the dash, and they look alike. Parts makers sort them by the job each one does:

• Blend (temperature) actuatorMixes hot and cold air to set the temperature. Every car has at least one; dual-zone cars have one per side, and some add upper and lower or rear ones.
• Mode actuatorSends the air to the dash vents, the floor or the windshield, or a mix of them.
• Recirculation actuatorChooses between fresh outside air and air pulled back from the cabin.

This page covers the blend actuator. If the temperature is right but the air comes out of the wrong vents, that's the mode actuator, a near twin that often sits right beside it.

Use this image

Free to republish under CC BY 4.0: credit Oil & Miles and link to this page. The snippet does both.

Copy the snippet

How makers describe it3 sources

• Dorman air door actuator 604-706, as RockAuto lists itBlend works by "mixing hot and cold air from the heater core and the evaporator core." Mode picks floor, panel or defrost; recirculation picks outside or inside air.
• Global Parts Distributors tech tip 140 (2018)The blend actuator "is typically located closer to the heater core and evaporator than the mode door", and the two "are typically located side by side and look nearly identical".
• RockAuto census, October 1, 2026The same catalog category lists blend, mode and recirculation actuators together, sold by side (left or right) and position (upper or lower) on many of the 13 cars we priced.

What are the symptoms of a bad blend door actuator?

A failing blend door actuator gives you air at the wrong temperature: stuck hot, stuck cold, or different from one side of the cabin to the other. Some also click or tap behind the dash while the motor tries to move a door it can't.

A broken door, a software fault or a weak heater core can cause the same signs, so treat them as a reason to test, not to buy. The next section shows how the documents tell those apart.

1. Wrong or stuck temperature

The plainest sign is air that ignores the knob: full heat on a summer day, or cold air when you want heat. It happens when the actuator stops part way, or the door it drives is jammed in one spot.

Ford's bulletin for the 2015 to 2020 F-150 pickup calls it a lack of heat or cooling as the setting moves between hot and cold. Chrysler's bulletin for some 2014 and 2015 minivans with manual dual-zone climate is titled blend door "stuck in full heat mode", with hot air from the right-side vents.

2. One side hot, the other cold

On a car with separate driver and passenger temperatures, each side has its own blend door and actuator. When one fails, your side can stay at one temperature while the other side still follows its knob.

Nissan's bulletin for the 2016 and 2017 Titan pickup has one side's vents 10 degrees or more off the other side, fixed with a new motor for that side. We read it only as NHTSA, the federal safety agency, summarizes it.

GM's early-warning bulletins for its newer Chevy and GMC trucks and SUVs describe low heat on the driver's side. They name a plugged heater core before the doors, so it's worth having the core checked first.

3. Clicking or tapping behind the dash

Some failing actuators click or tap steadily behind the dash while the heat or A/C is on. Inside the actuator a small motor turns plastic gears, and a stripped gear lets it spin and skip instead of moving the door.

A parts maker, Global Parts Distributors, names stripped or broken plastic gears as how actuators wear out, and clicking as the tell-tale sign. But a click isn't always a broken part: Mazda traces a repeating click on some 2019 and 2020 Mazda3 and CX-30 models to doors moving back and forth, fixed by software.

Symptoms in the bulletins5 documents

• 2015 to 2020 Ford F-150, 2017 to 2022 Super Duty"Lack of heat or cooling from the cabin vents" when the setting moves between hot and cold; trouble code B1081:07. Ford TSB 23-2115.
• 2014 to 2015 Chrysler Town & Country, Dodge Grand Caravan, built January 2014 to May 2015, manual temperature controlBlend door stuck in full heat; hot air from the right-side vents. Chrysler bulletin 24-005-16.
• 2016 to 2017 Nissan TitanVents on one side 10 degrees F or more off the other side; replace that side's air mix door motor. Nissan NTB17-116, from NHTSA's bulletin index (full text not available).
• 2019 to 2022 Chevrolet Silverado, GMC Sierra and GM SUVsLower heat from the driver's vents; a plugged heater core or a link inside the case that came apart. GM PIT5868C.
• 2019 to 2020 Mazda3, 2020 CX-30 with automatic A/C"Repeating click sound when using the HVAC system"; the fix is a reprogrammed climate control unit. Mazda 07-001-26.

Is it safe to drive with a bad blend door actuator?

Yes, as long as you can still clear the windshield, because it only changes your air temperature, not the engine or the brakes. Stop driving when it leaves you without defrost on a cold or damp day.

That's the real risk: the blend door decides whether the defroster gets warm air. Cold air won't clear a fogged or icy windshield, so the glass stays blind while the engine runs fine.

Is it the actuator or the blend door itself?

It can be either, and you'll only know once the actuator is off and someone moves the door by hand. A door that moves freely points to the actuator, one that sticks points to the door, and that test keeps a shop from selling you a motor you don't need.

GM wrote a bulletin for exactly that mistake, asking technicians to check for a broken temperature door instead of replacing the actuator. A parts maker adds a second trap: a new actuator fitted while the door sits slightly open will seem faulty from the first day.

Ford's bulletin for the F-150 gives the clearest order of tests, in the 4 steps below to tell a bad actuator from a bad blend door:

1. Read the door positions on a scan tool. A shop's scan tool shows where the computer thinks each door is. On the F-150 it must sweep from about 0% to about 100% between cold and hot.
2. Take the actuator off if the reading fails. It comes off the outside of the heater box, which leaves the door's arm or cam free to turn by hand.
3. Move the door arm by hand. Ford's test: the arm should move with "light, but smooth resistance" all the way from fully open to fully closed.
4. Decide from what your hand feels. Smooth means the actuator or its cam is at fault, and the box stays in. Stiff or stuck means the door, and on the F-150 the heater box comes out.

Software can fake all of this, so ask the shop to check for a bulletin before any parts go in. Chrysler fixes a dead left door on some 2014 to 2018 Chargers, Challengers and 300s by reprogramming the climate module.

Actuator or door5 documents

• 2015 to 2020 Ford F-150, 2017 to 2022 Super DutyDoor positions must read 0 to 1% up to 99 to 100%; arm moves with "light, but smooth resistance". Free door: replace the cam, keep the box. Binding door: housing out, doors lubricated. Ford TSB 23-2115, pages 3 to 4.
• GM, models not listed in the index"Inspect for a broken temperature door versus replacing the temperature actuator and resulting in a misdiagnosis." GM PIT5581, from NHTSA's bulletin index (full text not available).
• Global Parts Distributors tech tip 133 (2018)Before fitting a new actuator, check the door is completely closed; "if the blend door is left open, even slightly", the temperature won't match the setting.
• 2022 to 2023 Jeep Wagoneer, Grand WagoneerDriver side cold when set to hot: the actuator's cam gear disengaged; a 3 mm foam washer fixes it. Jeep bulletin 24-007-23.
• 2014 to 2019 Dodge Charger, Chrysler 300, 2015 to 2019 ChallengerLeft temperature door inoperable on 2014 to 2018 cars; reprogram the climate module, then run the calibration. Chrysler bulletin 24-012-19.

Where is the blend door actuator located?

It's mounted on the outside of the heater box, the plastic case behind the dashboard that holds the heater core and the A/C evaporator. In the documents we read it sits on the passenger side, under the dash, and its output shaft turns the door inside, directly or through a cam.

The exact spot depends on the car, and a car with separate driver and passenger settings has one on each side. A parts maker notes that the blend and mode actuators often sit side by side and look nearly identical, so check which one moves when you turn the temperature knob before you unbolt anything.

Use this image

Free to republish under CC BY 4.0: credit Oil & Miles and link to this page. The snippet does both.

Copy the snippet

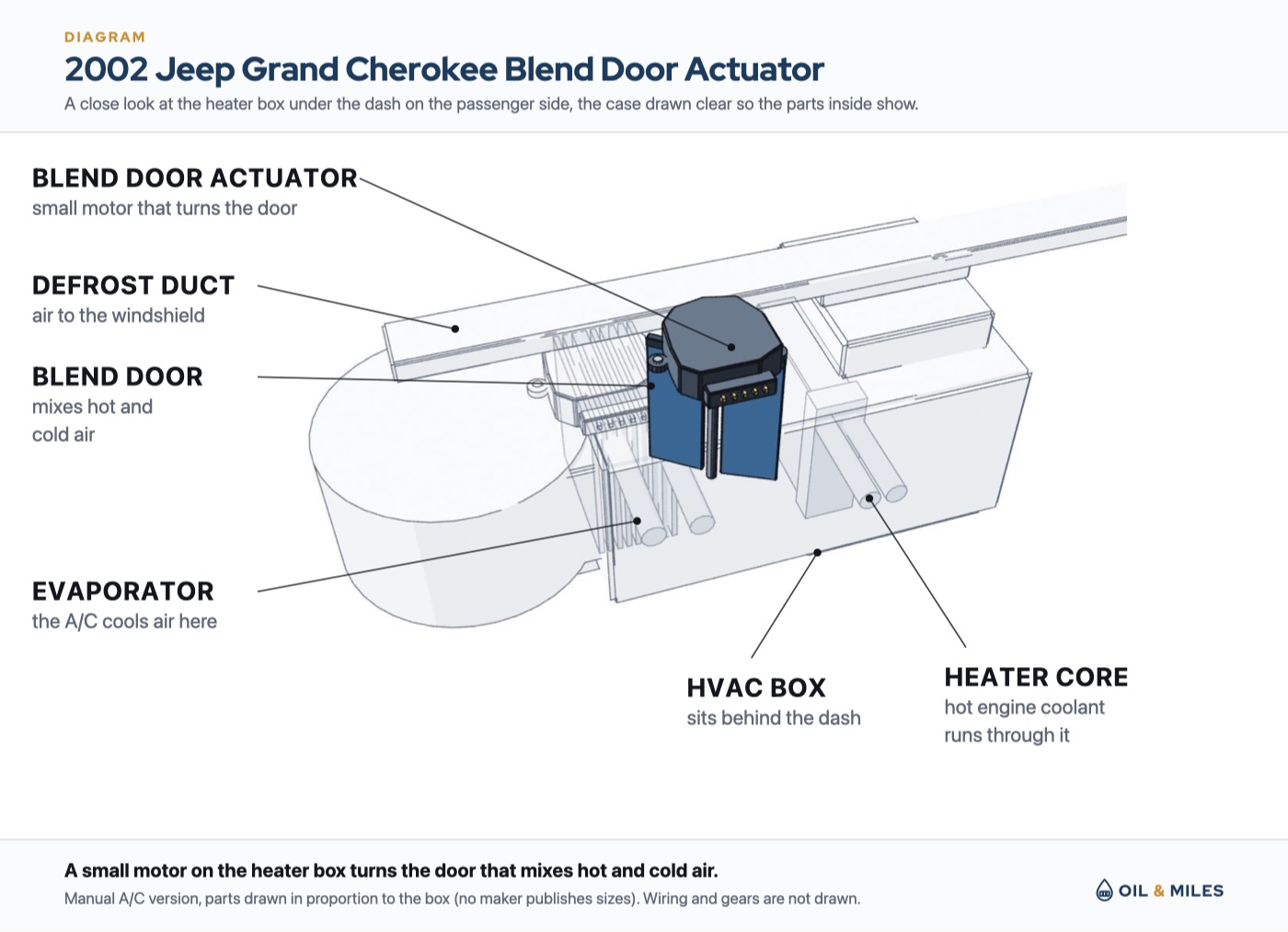

On the 2002 Jeep Grand Cherokee drawn above, the factory parts diagram shows the heater box running across the car under the dash, with the blower at the passenger end. The temperature motor mounts on the outside of the case, and the blend door inside is a pair of long, narrow flaps on one shaft.

Getting to it ranges from under-the-dash access to removing the whole heater box. Dorman, a parts maker, sells a replacement door for the Ford Explorer that fits through a cut in the bottom of the heater box, made from under the dash so the box stays in.

When you buy one, the part must match the side, the position and the climate control type, since many cars use a different actuator for each. Our free VIN decoder confirms the trim before you order.

Where the documents put it4 sources

• 2002 Jeep Grand Cherokee, manual climate controlHeater and A/C unit drawing: blower housing at one end, evaporator, blend air door (5012751AA), heater core, and the temperature door servo (5012750AA) on the outside of the case. Mopar parts catalog, read October 1, 2026.
• 2002 Jeep Grand Cherokee, automatic temperature controlLeft and right blend actuators, OE number 5012710AA, sold separately from the manual version. RockAuto fitment notes, October 1, 2026.
• 2010 Chevrolet Traverse (example)Blend and mode actuators side by side on the HVAC housing under the dash, passenger side. Global Parts Distributors tech tip 140.
• Ford Explorer and Ranger, Dorman door kit 902-221"The cut is made from under the dash panel on the passenger side." Dorman install sheet.

How do you reset a blend door actuator?

If your car has electronic climate control, a reset is a calibration: the computer drives each door to both ends and learns where they stop. The carmakers we read do it with a dealer scan tool, and none of their bulletins gives a reset by disconnecting the battery.

That matters, because a battery disconnect is a reset tip you'll meet online, yet it isn't a step any carmaker bulletin we read prints. Here's how carmakers reset the actuator, in their own bulletins:

• Chrysler and DodgeAn "Actuator Calibration Test" run from the dealer scan tool, after a new actuator or a software update.
• GMAn actuator learn with the dealer scan tool after a heater box repair on its newest trucks and SUVs.
• LexusServo initialization with the dealer scan tool, plus a cleaning routine before anyone replaces a servo.
• Aftermarket installDorman's door kit sheet says the computer has to recalibrate the door's travel after the battery goes back on. It "may take a few cycles".

One button sequence does exist, but for a different motor: GM's bulletin for the 2019 Silverado and Sierra relearns the mode actuator, the one that picks the vents. It cycles panel and defrost with the blower on low, so it won't fix a temperature problem.

Calibration steps by carmaker5 documents

• 2014 to 2015 Chrysler Town & Country, Dodge Grand Caravan"Perform the Actuator Calibration Test routine found under the Systems Test tab in the HVAC control module view in the wiTECH Diagnostic Application." Then cycle hot and cold three times. Chrysler bulletin 24-005-16, page 3.
• 2025 to 2026 GM full-size trucks and SUVsAfter the case repair, "perform a HVAC actuator learn procedure using GDS 2". GM PIT6452E, page 2.
• 2013 to 2017 Lexus GS, IS, RCReprogram the A/C amplifier, run the servo cleaning utility, then initialize the servos with Techstream. Lexus L-SB-0001-21.
• Ford Explorer and Ranger, Dorman door kit 902-221"The computer needs to recalibrate to learn the position of the new hardware and may take a few cycles." Dorman install sheet.
• 2019 Chevrolet Silverado 1500, GMC Sierra 1500 (mode actuator only)Panel mode, blower low, wait 15 seconds, MAX defrost, wait 15 seconds, back to panel; 0.3 hours. GM PIT5660, page 1.

How much does it cost to replace a blend door actuator?

The part costs $11 to $165 across the 13 cars we priced, and labor is where the bill splits. The carmakers' own times run up to about two hours for the actuator, and five or more when the heater box comes out.

Your labor is the carmaker's book time, the hours a dealer is paid for the job, times what an independent shop charges you. Almost half of 752 US shops in a 2025 industry survey charged $120 to $159 an hour, so that's the rate used here.

So the same complaint can cost under $100 or over $1,000 in labor, depending on whether the door needs the box out. Some carmakers have paid for it: Chrysler extended coverage to 5 years or 60,000 miles on 2014 and 2015 minivans built with manual dual-zone climate between January 2014 and May 2015.

That extension was time-limited, so ask a dealer whether a newer one covers your car. Our car complaints lookup shows what other owners of your model reported.

Where the hours come from5 documents

• Mazda 07-001-26, 2019 to 2020 Mazda3, 2020 CX-30Reprogram the climate control unit, 0.2 hours, page 2.
• Ford TSB 20-2236, 2015 to 2019 F-150Retrieve codes, clean the actuator cam and replace the actuator, 0.4 hours, page 2.
• Chrysler 24-005-16, 2014 to 2015 minivansTest and replace the right actuator, 0.6 hours, page 4; covered by a 5-year, 60,000-mile warranty extension, page 3.
• Ford TSB 23-2115, 2015 to 2020 F-150, 2017 to 2022 Super DutyClean the cam and test, 0.5 hours; with the climate control housing removed and doors lubricated, 5.0 to 5.8 hours, pages 2 to 3.
• Lexus L-SB-0001-21, 2013 to 2017 GS, IS, RC0.7 hours for software; 1.3 to 2.1 hours to replace servos on the car; 6.5 to 7.7 hours with the A/C box out; repaired under the Lexus Basic Warranty, 48 months or 50,000 miles, pages 6 to 8.

Common questions

Asked most often

How do I know if my blend door actuator is bad?

The air stays at one temperature whatever you set, one side differs from the other, or you hear clicking behind the dash. To be sure, a shop removes the actuator and moves the door by hand, since a stuck door gives the same signs.

Can I replace the actuator myself?

Sometimes, when it's reachable from under the dash; carmakers' book times as short as 0.4 hours show how simple some are. Match the side, position and climate type, and expect a calibration afterward on cars with electronic climate control.

How long does the replacement take?

Carmakers pay their dealers 0.4 to 0.6 hours for an easy one and up to about 2 hours for a hard-to-reach one. When the heater box has to come out, the times we read run 5 to nearly 8 hours.

Does disconnecting the battery reset the actuator?

No carmaker bulletin we read uses a battery disconnect; they calibrate with a scan tool. One parts maker's install sheet does say the system recalibrates over a few cycles after the battery goes back on.

How many blend door actuators does a car have?

At least one, and one per side on a car with separate driver and passenger settings; some cars add upper and lower or rear ones. Mode and recirculation actuators sit nearby and often look the same.

Is a failing actuator dangerous?

Only when it stops the defroster from clearing the windshield. The engine and brakes aren't affected, but a fogged or icy windshield is a reason to park until it's fixed.

Prices are ranges compiled in October 2026 for the US market and vary by region, engine and shop rate. Prices from $10 up are rounded to the nearest dollar, so $14.13 reads as $14 and $14.52 as $15. Below $10 they're exact. This article is general information, not advice about your specific vehicle. See the disclaimer.
